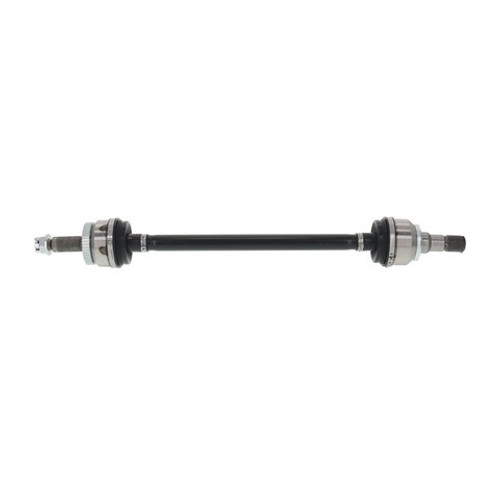

TrakMotive CV Axle Shaft P/N:KA-86067

Be the first to review this product
$316.99
MPN: KA-86067
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
TrakMotive CV Axle Shaft P/N:KA-86067
TrakMotive CV Axle Shaft P/N:KA-86067
$316.99

Keep power flowing smoothly from the transaxle to the drive wheel through every turn with the TrakMotive CV Axle Shaft (KA-86067) — a direct-fit replacement for the 2018-2020 Kia Stinger [All]. This premium-grade assembly transmits engine torque to the drive wheel while its constant-velocity joints flex with steering and suspension travel.

  • Premium-grade build: thermoplastic inboard and outboard joint boots.
  • Splined connections: 30 inboard and 30 outboard splines, with a male inboard joint and a conventional outboard joint.
  • ABS tone ring included: toothed ring with a 47-tooth count.
  • Axle nut included: M22x1.5 thread, 32 mm hex, cotter-pin locking type.
  • Sizing: 31.625 in (803 mm) compressed and 34.44 in (874 mm) extended.

Worn or damaged CV axles often show clicking or popping during turns, grease slung from a torn boot, or vibration that grows with speed — signs this shaft may need replacing. Built by an ISO 9001:2008 and TS 16949:2009 certified company and backed by a Limited Lifetime Warranty. Country of origin: China. Sold individually; this listing is for one CV axle shaft. Manufacturer part number KA-86067 (also KA86067).

This part cross-references / interchanges with the following part numbers:

KA-86067

Frequently Asked Questions

What vehicle does this CV axle shaft fit?

It's a direct-fit replacement for the 2018-2020 Kia Stinger [All]. See the Buyer's Guide tab to confirm fitment for your vehicle.

Is the axle nut included?

Yes. The axle nut is included, with an M22x1.5 thread, a 32 mm hex, and a cotter-pin locking type.

Does this axle have an ABS tone ring?

Yes. It includes a toothed ABS tone ring with a 47-tooth count.

What are common signs a CV axle may need replacing?

Clicking or popping during turns, grease flung from a torn boot, or vibration that increases with speed. Diagnose the cause before replacing.

Is this axle covered by a warranty?

Yes. It's backed by a Limited Lifetime Warranty and is built by an ISO 9001:2008 and TS 16949:2009 certified company.
