Rear Right CV Axle Shaft for 2015-2017 Kia K900 - TrakMotive KA-86069

$344.99

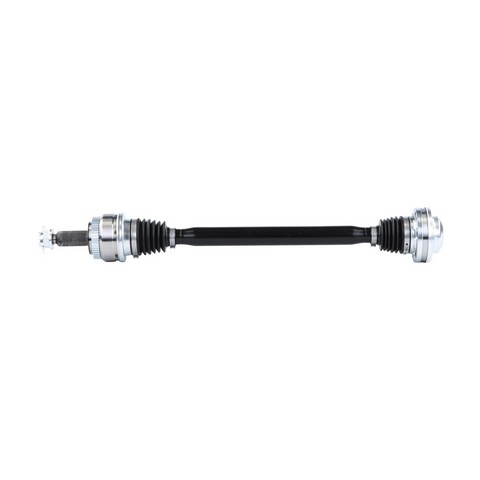

TrakMotive CV Axle Shaft KA-86069
TrakMotive CV Axle Shaft KA-86069 - view 2
TrakMotive CV Axle Shaft KA-86069 - view 3
TrakMotive CV Axle Shaft KA-86069
TrakMotive CV Axle Shaft KA-86069 - view 2
TrakMotive CV Axle Shaft KA-86069 - view 3

Vehicles this part fits
    Part number: KA-86069
    UPC: 840140521832
    Condition: New
    Weight: 18.70 LBS
    Item Package Quantity: 1
    $344.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    TrakMotive CV Axle Shaft P/N:KA-86069
    TrakMotive CV Axle Shaft P/N:KA-86069
    $344.99
    $344.99

    TrakMotive KA-86069 rear right CV axle shaft for the 2015-2017 Kia K900 carries drive torque to the wheel as the suspension moves. The TrakMotive CV axle has a joint at each end.

    • Toothed ABS ring with 47 teeth
    • Axle nut with an M22x1.5 thread, 32 mm hex and cotter pin locking
    • Bolt-on inboard joint with 6 bolt holes
    • Conventional outboard joint with 30 splines
    • Thermoplastic boots on the inboard and outboard joints

    Quick facts

    • Part: TrakMotive KA-86069 CV axle shaft
    • Fits: 2015-2017 Kia K900
    • Position: Rear right

    A clicking noise on turns, vibration under acceleration or grease thrown from a torn boot can mean this axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind similar signs.

    Fits

    It is a direct-fit replacement for the 2015-2017 Kia K900.

    Specifications

    Fit and size

    • Position: rear right
    • Quantity per application: 1
    • Overall compressed length: 742 mm (29.19 in)
    • Overall extended length: 815 mm (32.06 in)
    • Axle nut thread size: M22x1.5
    • Axle nut hex size: 32 mm (1.25 in)
    • Inboard joint bolt holes: 6
    • Outboard splines: 30

    Build and materials

    • Inboard joint: bolt-on
    • Outboard joint: conventional, splined shaft connection
    • Boot material: thermoplastic, inboard and outboard
    • ABS tone ring: included, toothed, 47 teeth
    • Axle nut locking: cotter pin
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV axle shaft with its axle nut. This listing is one axle for the rear right, which takes one; the rear left is a separate part ordered on its own.

    This part cross-references / interchanges with the following part numbers:

    KA-86069

    Frequently Asked Questions

    Is the TrakMotive KA-86069 the rear right axle for the 2015-2017 Kia K900?

    Yes. TrakMotive KA-86069 is the rear right CV axle shaft for the 2015-2017 Kia K900. The rear left side is a separate part.

    Does the TrakMotive KA-86069 come with an axle nut?

    Yes. The TrakMotive KA-86069 includes the axle nut, which has an M22x1.5 thread and a 32 mm hex and locks with a cotter pin.

    What is the compressed length of the TrakMotive CV axle shaft?

    This rear right axle measures 742 mm (29.19 in) compressed and 815 mm (32.06 in) fully extended.

    What does a clicking noise on turns mean for a rear CV axle?

    Clicking on turns, or vibration when accelerating, can mean an axle joint is worn. A shop can inspect the axle and confirm.

    Does this CV axle shaft include an ABS tone ring?

    Yes. This CV axle shaft includes a toothed ABS ring with 47 teeth.
