Rear Right CV Axle Shaft for 2018-2020 Kia Stinger - TrakMotive KA-86070

$322.99

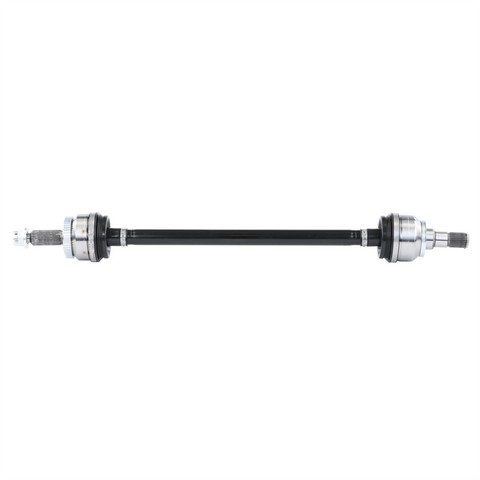

TrakMotive CV Axle Shaft KA-86070
TrakMotive CV Axle Shaft KA-86070 - view 2
TrakMotive CV Axle Shaft KA-86070 - view 3
TrakMotive CV Axle Shaft KA-86070 - view 4
TrakMotive CV Axle Shaft KA-86070 - view 5
TrakMotive CV Axle Shaft KA-86070 - view 6
TrakMotive CV Axle Shaft KA-86070
TrakMotive CV Axle Shaft KA-86070 - view 2
TrakMotive CV Axle Shaft KA-86070 - view 3
TrakMotive CV Axle Shaft KA-86070 - view 4
TrakMotive CV Axle Shaft KA-86070 - view 5
TrakMotive CV Axle Shaft KA-86070 - view 6

Vehicles this part fits
    Part number: KA-86070
    UPC: 840140521849
    Condition: New
    Weight: 19.10 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $322.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    TrakMotive CV Axle Shaft P/N:KA-86070
    TrakMotive CV Axle Shaft P/N:KA-86070
    $322.99
    $322.99

    TrakMotive KA-86070 rear right CV axle shaft for the 2018-2020 Kia Stinger carries engine torque to the rear right wheel. This TrakMotive CV axle has joints that flex with suspension travel and boots that keep grease around them.

    • Toothed ABS tone ring with 47 teeth included
    • Thermoplastic boots on both the inboard and outboard joints
    • Male inboard joint with 28 splines and conventional outboard joint with 30 splines
    • Axle nut included, M22x1.5 thread with a 32 mm hex

    Quick facts

    • Part: TrakMotive KA-86070 CV axle shaft
    • Fits: 2018-2020 Kia Stinger
    • Position: Rear right
    • Condition: New

    A clicking or popping noise in turns, vibration under acceleration, or a torn boot with grease thrown around it can mean the axle is worn. Before you replace it, rule out a worn wheel bearing or a tire problem, since either can produce similar noise or vibration.

    Fits

    This axle is a direct-fit replacement for the 2018-2020 Kia Stinger. This listing is one axle for the rear right, and this side takes one; the rear left side is a separate part ordered on its own.

    Specifications

    Fit and size

    • Position: rear right
    • Quantity per application: 1
    • Overall compressed length: 848 mm (33.375 in)
    • Overall extended length: 919 mm (36.19 in)
    • Splines: 28 inboard, 30 outboard
    • Axle nut: M22x1.5 thread, 32 mm (1.25 in) hex, cotter pin locking

    Build and materials

    • Joints: male inboard, conventional outboard, both with spline shaft connections
    • ABS tone ring: included, toothed, 47 teeth
    • Boot material: thermoplastic, inboard and outboard
    • Condition: new
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV axle shaft and one axle nut.

    This part cross-references / interchanges with the following part numbers:

    KA-86070

    Frequently Asked Questions

    Is the TrakMotive CV axle shaft KA-86070 made for the rear right of the 2018-2020 Kia Stinger?

    Yes. TrakMotive KA-86070 is the rear right axle for the 2018-2020 Kia Stinger. The rear left side takes a separate axle.

    Is the axle nut included with this rear right CV axle?

    Yes. The shaft comes with its axle nut, which has an M22x1.5 thread and a 32 mm hex and uses cotter pin locking.

    Does the TrakMotive KA-86070 axle include the ABS tone ring?

    Yes. TrakMotive KA-86070 includes a toothed ABS tone ring with 47 teeth.

    How long is this CV axle when compressed and extended?

    The overall compressed length is 848 mm (33.375 in) and the overall extended length is 919 mm (36.19 in).

    Does this axle have a warranty?

    Yes. This axle carries TrakMotive's limited lifetime warranty.
