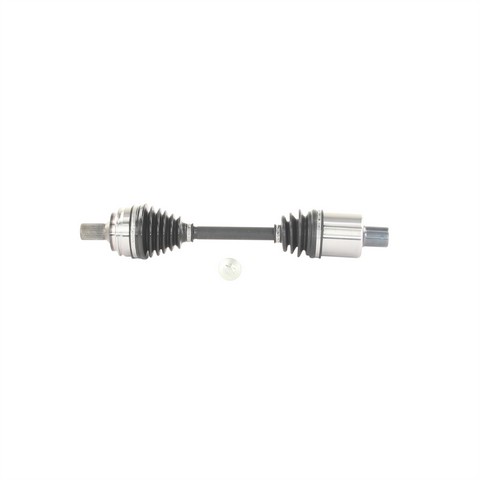

TrakMotive MB-8052 front left CV axle shaft for the 2014-2018 Mercedes-Benz CLS63 AMG S and other vehicles carries drive torque out to the front left wheel. Its joints flex with the suspension while the shaft keeps turning the wheel.
- Female inboard joint with 34 splines
- Conventional outboard joint with 30 splines
- Neoprene boots on both the inboard and outboard joints
- M16x1.5 axle bolt thread with an 82 mm bolt length
Quick facts
- Part: TrakMotive MB-8052 CV axle shaft
- Fits: 2014-2018 Mercedes-Benz CLS63 AMG S and other vehicles
- Position: Front left
- Condition: New
A clicking or popping noise on turns, vibration under acceleration or grease around a torn boot can mean the axle shaft is wearing out. A worn wheel bearing can make similar noise, so these signs alone do not prove the axle is the problem.
Fits
The vehicles covered include the 2015-2016 Mercedes-Benz E63 AMG S and the 2014-2015 Mercedes-Benz E63 AMG, alongside the 2014-2018 Mercedes-Benz CLS63 AMG S. The quantity is one per side of the front axle: this listing is the front left, the front right is a separate part, and the two are normally replaced at the same time. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front left
- Quantity per side: 1
- Overall compressed length: 529 mm (20.83 in)
- Outboard joint bolt holes: 1
Build and materials
- Inboard and outboard joint boot material: Neoprene
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut is not included.
Interchange: NCV48011 · PR48011 · 2183301300 · 2213300801 · 2213301201 · 2213301401 · 2213301601 · 2213302101 · 2213306300 · 221330630080 · 2213309701 · 221330970164 · 2213309901
This part cross-references / interchanges with the following part numbers:
NCV48011, PR48011, 2183301300, 2213300801, 2213301201, 2213301401, 2213301601, 2213302101, 2213306300, 221330630080, 2213309701, 221330970164, 2213309901, MB-8052
Frequently Asked Questions
Is TrakMotive MB-8052 the right front left axle for the 2014-2018 Mercedes-Benz CLS63 AMG S?
Yes, TrakMotive MB-8052 is a front left axle for the 2014-2018 Mercedes-Benz CLS63 AMG S and the 2015-2016 Mercedes-Benz E63 AMG S. Check your exact model and engine in the "Vehicles it fits" section.
Is the axle nut included with this TrakMotive CV axle shaft?
No, TrakMotive MB-8052 does not include the axle nut or an ABS tone ring. The listing is one front left shaft.
What is the compressed length of this TrakMotive CV axle?
The overall compressed length is 529 mm (20.83 in). The axle bolt thread is M16x1.5, and the bolt is 82 mm long.
Can a clicking noise when turning point to a worn front left axle shaft?
Yes, it can: clicking on turns, vibration while accelerating or grease thrown from a torn boot are common signs of a worn CV axle. Have a torn boot looked at promptly.
Is 2213301201 a cross-reference number for this axle shaft?
Yes, 2213301201 is one of the numbers TrakMotive MB-8052 replaces, along with NCV48011 and PR48011. The full list is on the Interchange line.
