Front Right CV Axle Shaft for 2004-2011 Mitsubishi Endeavor - TrakMotive MI-8169

$108.99

TrakMotive CV Axle Shaft MI-8169 - view 2

TrakMotive CV Axle Shaft MI-8169 - view 3

Part number: MI-8169

UPC: 844084051691

Condition: New

Weight: 15.10 LBS

Sold as: 1 per listing, for the front right side

$108.99

Current Stock: 16

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

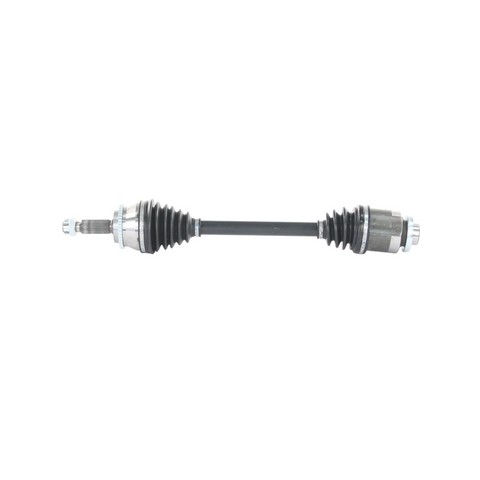

TrakMotive CV Axle Shaft P/N:MI-8169

$108.99

Description

TrakMotive MI-8169 front right CV axle shaft for the 2004-2011 Mitsubishi Endeavor carries drive torque from the drivetrain to the front right wheel. This TrakMotive CV axle has joints that flex with suspension travel and steering while the wheel keeps turning.

Neoprene boots on both the inboard and outboard joints
Toothed ABS tone ring with 43 teeth on the shaft
Female inboard joint with 28-2T splines and a conventional outboard joint with 27 splines
Axle nut included, M22x1.5 thread with a 32 mm hex and cotter pin locking
Overall compressed length of 643 mm (25.31 in)

Quick facts

Part: TrakMotive MI-8169 CV axle shaft
Fits: 2004-2011 Mitsubishi Endeavor
Position: Front right
Condition: New

A clicking noise on turns, vibration under acceleration or a torn boot with flung grease can mean an axle is worn, though other front-end parts can make similar noises. With the engine off, look over the visible boots for splits or grease before replacing the axle, and leave any running or on-the-lift test to a shop. Replacing both front axles together is the usual practice. This listing is one axle for the front right of the 2004-2011 Mitsubishi Endeavor; the front left is a separate part.

Fits

This axle is a direct-fit replacement for the front right side of the 2004-2011 Mitsubishi Endeavor.

Specifications

Fit and size

Position: front right
Quantity: 1 per listing, for the front right side
Overall compressed length: 643 mm (25.31 in)
Axle nut thread size: M22x1.5
Axle nut hex size: 32 mm (1.25 in)
Inboard splines: 28-2T
Outboard splines: 27

Build and materials

Inboard joint: female
Outboard joint: conventional
Joint boots: neoprene, inboard and outboard
ABS tone ring: included, toothed, 43 teeth
Axle nut: included, hex head, cotter pin locking
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its ABS tone ring and one axle nut.

Interchange: 66-3488 · 60-3487 · 80-4223 · MI-8-8709A · AX-97869
NCV51543 · 650519 · 239169 · 89606 · 40737130 · MI10514 · 7097869

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV51543, 650519, 239169, 66-3488, 60-3487, 80-4223, 89606, 40737130, MI-8-8709A, MI10514, MI-8169, 7097869, AX-97869

Buyer's Q&A

Frequently Asked Questions

Is TrakMotive MI-8169 the right CV axle for the front right of a 2004-2011 Mitsubishi Endeavor?

Yes. TrakMotive MI-8169 is the front right CV axle shaft for the 2004-2011 Mitsubishi Endeavor. The front left side is a separate part.

Is the axle nut included with the TrakMotive CV axle shaft?

Yes. TrakMotive MI-8169 comes with its axle nut, an M22x1.5 nut with a 32 mm hex that locks with a cotter pin. The shaft also carries its ABS tone ring.

Does this front right axle have an ABS tone ring?

Yes. The shaft has a toothed ABS tone ring with 43 teeth.

What can a click when turning or vibration under acceleration mean on a CV axle?

A click on turns, vibration when accelerating or grease thrown from a torn boot can point to a worn axle joint, though other parts can cause similar signs. A shop can check it promptly.

How long is the TrakMotive MI-8169 axle shaft?

TrakMotive MI-8169 measures 643 mm (25.31 in) overall compressed length. It has 28-2T inboard splines and 27 outboard splines.
