Rear Right CV Axle Shaft for 2015-2020 Mitsubishi Outlander Sport & More - TrakMotive MI-8224

$176.99

TrakMotive CV Axle Shaft MI-8224 - view 2

TrakMotive CV Axle Shaft MI-8224 - view 3

TrakMotive CV Axle Shaft MI-8224 - view 4

Part number: MI-8224

UPC: 844084043153

Condition: New

Weight: 13.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$176.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

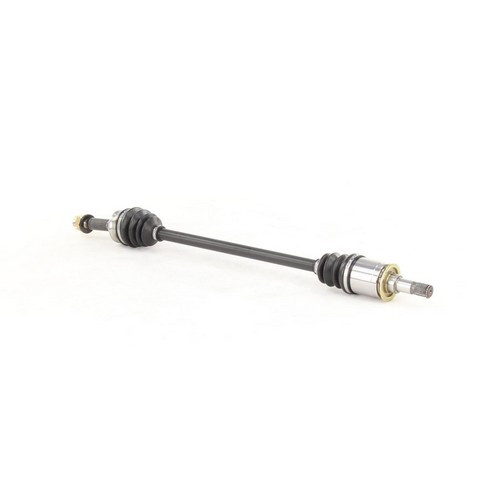

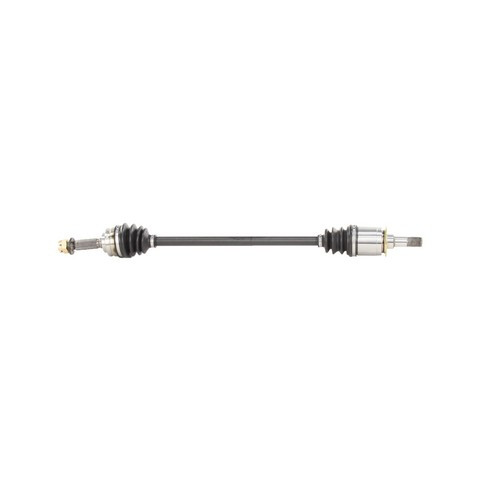

TrakMotive CV Axle Shaft P/N:MI-8224

$176.99

Description

TrakMotive MI-8224 rear right CV axle shaft for the 2015-2020 Mitsubishi Outlander Sport and other vehicles carries drive torque from the differential to the wheel. Its joints let the wheel flex with the suspension.

Male inboard joint with a 23-spline connection
Conventional outboard joint with a 25-spline connection
Neoprene boots on the inboard and outboard joints
Axle nut with M22x1.5 thread and a cotter pin locking type

Quick facts

Part: TrakMotive MI-8224 CV axle shaft
Fits: 2015-2020 Mitsubishi Outlander Sport and other vehicles
Position: Rear right
Condition: New

A clicking noise on turns, vibration under load or a torn boot with grease around it can mean the shaft is worn, though a worn wheel bearing or an out-of-balance tire can produce similar noise or vibration. This listing is one rear right shaft; the rear left is a separate part, and both sides are normally replaced together. The axle takes one shaft on each side, and this one covers the right.

Fits

Besides the 2015-2020 Mitsubishi Outlander Sport, it fits the 2008-2020 Mitsubishi Outlander and the 2012-2017 Mitsubishi Lancer. If your car isn't named here, look it up in the "Vehicles it fits" section.

Specifications

Fit and size

Position: rear right
Quantity per application: 1
Overall compressed length: 833 mm (32.8 in)
Splines: 23 inboard, 25 outboard
Axle nut: M22x1.5 thread, 32 mm (1.26 in) hex

Build and materials

Joints: male inboard, conventional outboard, both with spline connection
Boot material: neoprene, inboard and outboard
Axle nut locking type: cotter pin
ABS tone ring: not included
Grade: Premium
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The ABS tone ring is not included.

Interchange: 239224 · NCV10154 · 3715A008 · 3715A320

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

239224, NCV10154, 3715A008, 3715A320, MI-8224

Buyer's Q&A

Frequently Asked Questions

Will the TrakMotive MI-8224 fit a 2015-2020 Mitsubishi Outlander Sport?

Yes, TrakMotive MI-8224 is the rear right CV axle shaft for the 2015-2020 Mitsubishi Outlander Sport; if yours is a different car, find it in the "Vehicles it fits" section.

Does the TrakMotive CV axle come with the axle nut?

Yes, TrakMotive MI-8224 includes the axle nut (M22x1.5 thread, 32 mm hex, cotter pin locking type); the ABS tone ring is not included.

How many splines does this rear right axle shaft have?

This axle shaft has 23 splines on the inboard end and 25 on the outboard end. Its overall compressed length is 833 mm (32.8 in).

What signs can show this rear CV axle shaft is wearing out?

Clicking on turns or vibration under load while driving can mean a CV axle shaft is worn, and a torn boot is another sign. A shop can inspect the boots and joints.

Is 3715A008 a cross-reference for TrakMotive MI-8224?

Yes. 3715A008 is one of the numbers the TrakMotive MI-8224 rear right CV axle shaft replaces.
