Rear CV Axle Shaft for 1994-1995 Mazda Miata - TrakMotive MZ-8180

$144.99

TrakMotive CV Axle Shaft MZ-8180 - view 2

TrakMotive CV Axle Shaft MZ-8180 - view 3

TrakMotive CV Axle Shaft MZ-8180 - view 4

TrakMotive CV Axle Shaft MZ-8180 - view 5

Part number: MZ-8180

UPC: 844084061805

Condition: New

Weight: 13.50 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$144.99

Current Stock: 19

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

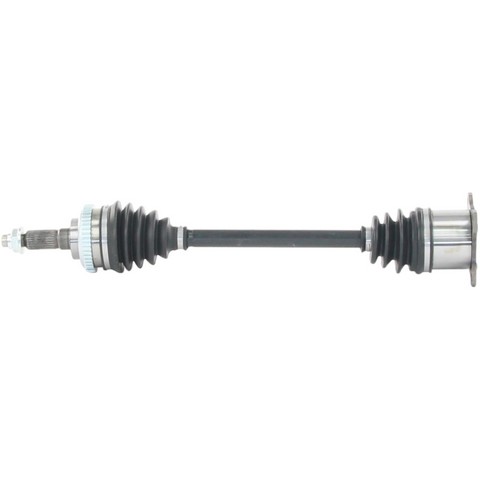

TrakMotive CV Axle Shaft P/N:MZ-8180

$144.99

Description

TrakMotive MZ-8180 rear CV axle shaft for the 1994-1995 Mazda Miata carries drive torque to the rear wheel. This TrakMotive CV axle shaft keeps turning the wheel while the suspension moves.

Neoprene boots on both the inboard and outboard joints
Flange-style inboard joint and conventional outboard joint
Toothed ABS tone ring with 44 teeth is included
Axle nut included, with a stake locking design

Quick facts

Part: TrakMotive MZ-8180 CV axle shaft
Fits: 1994-1995 Mazda Miata
Position: Rear

A clicking noise on turns, vibration, or grease thrown from a torn boot can mean a CV axle is wearing out. Before you replace this shaft, rule out a worn wheel bearing or a tire problem, since those can feel similar. Doing both rear axles together is the usual approach; this listing is one shaft, and the 1994-1995 Mazda Miata takes two.

Fits

This rear CV axle shaft is a direct-fit replacement for the 1994-1995 Mazda Miata.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 2
Overall compressed length: 622 mm (24.49 in)
Outboard splines: 26
Axle nut thread size: M20x1.5
Axle nut hex size: 29 mm (1.14 in)

Build and materials

Inboard joint: flange
Outboard joint: conventional
Boot material: neoprene (inboard and outboard)
ABS tone ring: included, toothed, 44 teeth
Axle nut locking type: stake
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Interchange: 60-8038 · AX-1144
249180 · NCV47097 · MD0225500 · MD0225500CCA · MD0225500CCC · MD0225500RC0 · MD0225500RCA · MD0325500 · MD0325500R00

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

249180, 60-8038, NCV47097, MD0225500, MD0225500CCA, MD0225500CCC, MD0225500RC0, MD0225500RCA, MD0325500, MD0325500R00, MZ-8180, AX-1144

Buyer's Q&A

Frequently Asked Questions

Is this TrakMotive CV axle the right rear axle for the 1994-1995 Mazda Miata?

Yes. TrakMotive MZ-8180 is a rear CV axle shaft for the 1994-1995 Mazda Miata, and the car takes two of them, one per rear wheel.

Does this rear CV axle shaft come with the axle nut and ABS tone ring?

Yes. The axle nut is included, and the shaft carries a toothed ABS tone ring with 44 teeth.

How long is the TrakMotive MZ-8180 axle shaft?

The TrakMotive MZ-8180 measures 622 mm (24.49 in) overall in its compressed length. Its outboard end has 26 splines.

How can I tell if a rear CV axle shaft is wearing out?

Clicking on turns or vibration while driving can mean the axle is wearing, and grease around a torn neoprene boot is another sign. A shop can inspect the joints and boots to find the cause.

What socket does the axle nut on this rear CV axle shaft need?

The axle nut has a 29 mm hex and an M20x1.5 thread. It is a stake-locking nut.
