Front Right CV Axle Shaft for 2016-2021 Mazda CX-9 - TrakMotive MZ-8232

$225.99

TrakMotive CV Axle Shaft MZ-8232 - view 2

TrakMotive CV Axle Shaft MZ-8232 - view 3

Part number: MZ-8232

UPC: 844084031143

Condition: New

Weight: 26.10 LBS

Item Package Quantity: 1

$225.99

Current Stock: 8

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

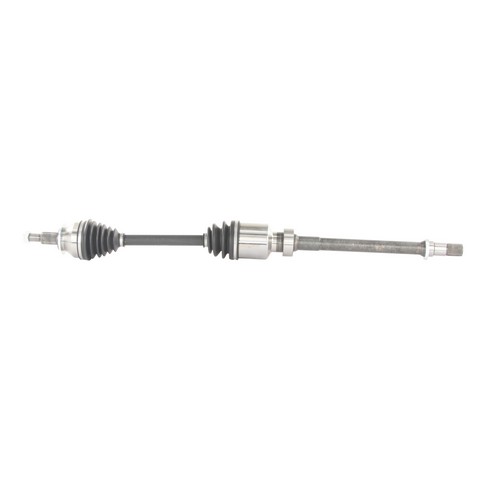

TrakMotive CV Axle Shaft P/N:MZ-8232

$225.99

Description

TrakMotive MZ-8232 front right CV axle shaft for the 2016-2021 Mazda CX-9 sends drive torque to the wheel. This TrakMotive CV axle flexes with suspension travel and steering angle so the wheel keeps turning.

Male inboard joint with 31 splines
Conventional outboard joint with 31 splines
Neoprene boots on the inboard and outboard joints
Self-locking M22x1.5 axle nut included, with a 32 mm hex
Overall compressed length of 1056 mm (41.57 in)

Quick facts

Part: TrakMotive MZ-8232 CV axle shaft
Fits: 2016-2021 Mazda CX-9
Position: Front right
Condition: New

A clicking or popping noise on turns, vibration under acceleration or grease leaking from a torn boot can mean a CV axle is worn. A wheel bearing, hub, tire or engine mount can be behind similar signs too, so find the cause before buying. Front axles are normally replaced as a pair; this listing is one axle, the front right, and each side takes one.

Fits

It is a direct-fit replacement for the 2016-2021 Mazda CX-9.

Specifications

Fit and size

Position: Front right
Quantity per application: 1
Overall compressed length: 1056 mm (41.57 in)
Splines: 31 inboard, 31 outboard
Axle nut thread size: M22x1.5
Axle nut hex size: 32 mm (1.26 in)

Build and materials

Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Boot material: neoprene on both joints
Axle nut: self-locking hex, included
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft with its self-locking axle nut. The ABS tone ring is not included.

Interchange: NCV47075 · NCV47084

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV47075, NCV47084, MZ-8232

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive MZ-8232 front right axle fit the 2016-2021 Mazda CX-9?

Yes. TrakMotive MZ-8232 is listed for the front right position on the 2016-2021 Mazda CX-9. The front left side takes a separate axle.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes. The self-locking axle nut is included with the shaft. The ABS tone ring is not included.

What size is the axle nut on this front right CV axle?

TrakMotive MZ-8232 uses an M22x1.5 self-locking nut with a 32 mm hex. The axle's overall compressed length is 1056 mm (41.57 in).

How can I tell if a CV axle boot is damaged?

With the engine off, look for a split neoprene boot or grease spattered around the joint, and listen for clicking on turns. Any of these can mean the axle is worn.

Does TrakMotive MZ-8232 interchange with NCV47075?

Yes. NCV47075 is listed as an interchange number for TrakMotive MZ-8232, which is the front right axle.
