Front Left CV Axle Shaft for 2007-2009 Mazda 3 - TrakMotive MZ-8244

$140.99

TrakMotive CV Axle Shaft MZ-8244 - view 2

TrakMotive CV Axle Shaft MZ-8244 - view 3

TrakMotive CV Axle Shaft MZ-8244 - view 4

TrakMotive CV Axle Shaft MZ-8244 - view 5

TrakMotive CV Axle Shaft MZ-8244 - view 6

Part number: MZ-8244

UPC: 844084041739

Condition: New

Weight: 17.50 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$140.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

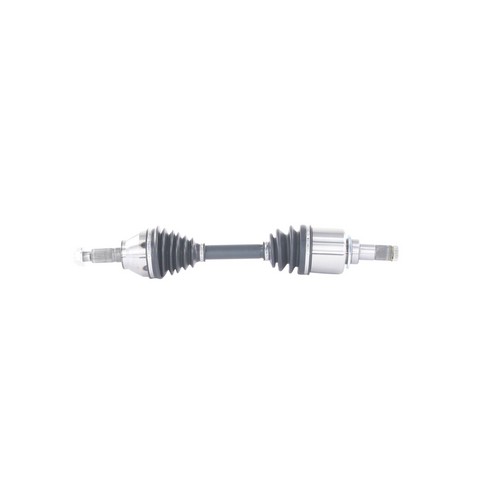

TrakMotive CV Axle Shaft P/N:MZ-8244

$140.99

Description

TrakMotive MZ-8244 front left CV axle shaft for the 2007-2009 Mazda 3 carries engine torque from the transmission to the wheel. This TrakMotive CV axle has a splined joint at each end and flexes with suspension travel.

Male inboard joint with 30 splines
Conventional outboard joint with 28 splines
Self-locking axle nut with an M22x1.5 thread and 32 mm hex

Quick facts

Part: TrakMotive MZ-8244 CV axle shaft
Fits: 2007-2009 Mazda 3
Position: Front left
Condition: New

A clicking noise on tight turns, vibration under acceleration or grease thrown from a torn boot can mean an axle is worn. Before you replace this axle, rule out a bad wheel bearing, a tire problem or a loose suspension part, since those can feel similar. Replace the front axles together where you can; this listing is one axle.

Fits

This is a direct-fit CV axle replacement for the 2007-2009 Mazda 3.

Specifications

Fit and size

Position: front left
Quantity for this position: 1
Overall compressed length: 601 mm (23.66 in)
Inboard splines: 30
Outboard splines: 28
Axle nut: M22x1.5 thread, 32 mm hex

Build and materials

Inboard joint type: male
Outboard joint type: conventional
Axle nut: self-locking, hex head
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The ABS tone ring is not included. The front left takes one axle; the front right is ordered separately.

Interchange: 249244 · NCV47107 · GG4625600C

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

249244, NCV47107, GG4625600C, MZ-8244

Buyer's Q&A

Frequently Asked Questions

Is this the 2007-2009 Mazda 3 CV shaft for the left or right side?

TrakMotive MZ-8244 is the front left axle for the 2007-2009 Mazda 3. The front right side is a separate part and is ordered on its own.

Will this work as a 2008 Mazda 3 CV axle replacement?

Yes. The 2008 model year falls inside the 2007-2009 Mazda 3 range, and TrakMotive MZ-8244 is the front left axle for those cars.

Does the TrakMotive MZ-8244 axle include an ABS tone ring?

No. The ABS tone ring is not included. The axle does come with its axle nut.

What size is the axle nut that comes with this CV axle shaft?

The self-locking axle nut has an M22x1.5 thread and a 32 mm hex, and it is included with the axle.

Is the TrakMotive CV axle shaft MZ-8244 the same part as NCV47107?

Yes, NCV47107 is a listed interchange number for TrakMotive MZ-8244. The other listed numbers are 249244 and GG4625600C.
