Front Left CV Axle Shaft for 2009-2014 Nissan Murano - TrakMotive NI-8352

$120.99

TrakMotive CV Axle Shaft NI-8352 - view 2

TrakMotive CV Axle Shaft NI-8352 - view 3

Part number: NI-8352

UPC: 844084072696

Condition: New

Weight: 17.80 LBS

Sold as: 1 for the front left

Part Has Core (Y/N): N

$120.99

Current Stock: 94

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

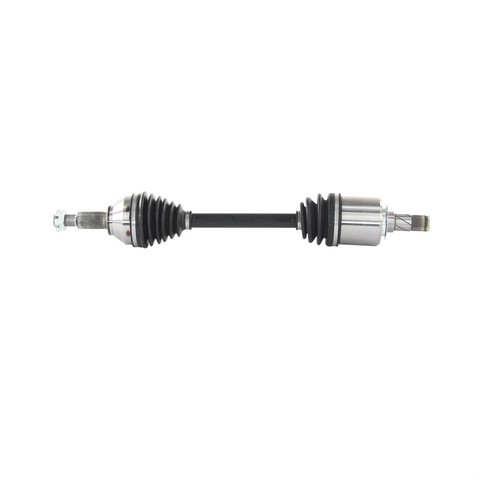

TrakMotive CV Axle Shaft P/N:NI-8352

$120.99

Description

TrakMotive NI-8352 front left CV axle shaft for the 2009-2014 Nissan Murano carries drive torque from the transmission to the wheel while the suspension moves. This TrakMotive CV axle flexes at both joints, and a boot at each end keeps the grease in.

TrakMotive CV axle shaft with neoprene boots on the inboard and outboard joints
Male inboard joint with 29 splines
Conventional outboard joint with 32 splines
Axle nut included, with a 36 mm hex and cotter pin locking

Quick facts

Part: TrakMotive NI-8352 CV axle shaft
Fits: 2009-2014 Nissan Murano
Position: Front left
Condition: New

A clicking noise on turns, vibration under acceleration or a torn boot with grease thrown around can mean the axle is worn, though a worn wheel bearing or an out-of-balance tire can sit behind the vibration too.

Fits

It is a direct-fit CV axle replacement for the 2009-2014 Nissan Murano. One axle goes on each side at the front; this listing is the front left, and the front right is a separate part ordered separately. Both sides are normally replaced together.

Specifications

Fit and size

Position: front left
Quantity: 1 for the front left
Overall compressed length: 671 mm (26.4 in)
Inboard joint: male, 29 splines
Outboard joint: conventional, 32 splines
Axle nut thread size: M24x1.5
Axle nut hex size: 36 mm

Build and materials

Boot material: neoprene on both joints
Axle nut: included, cotter pin locking
ABS tone ring: not included
Grade type: Premium
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft and one axle nut. The ABS tone ring is not included.

Interchange: 66-6301 · 60-6301 · NI-8-8692
259352 · NCV53993 · 93452 · 40738132 · 391011AA0A · 391011AA0C · C91011AAMJ · NI10546

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

259352, 66-6301, 60-6301, NCV53993, 93452, 40738132, NI-8-8692, 391011AA0A, 391011AA0C, C91011AAMJ, NI10546, NI-8352

Buyer's Q&A

Frequently Asked Questions

Is NI-8352 the CV axle replacement for a 2010 Nissan Murano?

Yes. TrakMotive NI-8352 is a front left CV axle shaft for the 2009-2014 Nissan Murano, and that range includes 2010.

Is this 2009-2014 Nissan Murano CV axle for the left or the right side?

It is for the front left. The front right takes its own axle, which is a separate part ordered separately from this one.

Does this CV axle shaft come with the axle nut?

Yes. One axle nut is included, and it is the cotter-pin locking type. The ABS tone ring is not included.

What axle nut size and spline counts does the NI-8352 have?

TrakMotive NI-8352 uses an M24x1.5 axle nut with a 36 mm hex. The inboard end has 29 splines and the outboard end has 32.

Does NI-8352 interchange with 391011AA0A?

Yes. 391011AA0A is one of the numbers this axle replaces, along with 66-6301 and NCV53993. The full list is on the Interchange line.
