Rear CV Axle Shaft for 2009-2021 Nissan GT-R - TrakMotive NI-8606

$194.99

TrakMotive CV Axle Shaft NI-8606 - view 2

TrakMotive CV Axle Shaft NI-8606 - view 3

TrakMotive CV Axle Shaft NI-8606 - view 4

Part number: NI-8606

UPC: 844084031846

Condition: New

Weight: 17.60 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$194.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

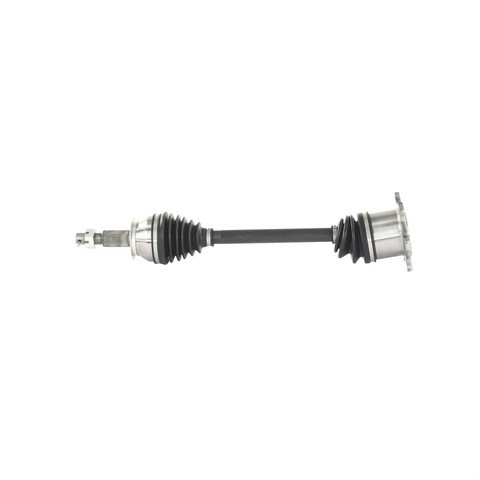

TrakMotive CV Axle Shaft P/N:NI-8606

$194.99

Description

TrakMotive NI-8606 rear CV axle shaft for the 2009-2021 Nissan GT-R carries drive torque out to the wheel. This TrakMotive CV axle has a joint at each end so the wheel can move with the suspension while it keeps turning.

Flange inboard joint with a bolt-on shaft connection
Conventional outboard joint with a spline connection and 32 outboard splines
Neoprene boots on the inboard and outboard joints
Axle nut included, with an M24x1.5 thread and cotter pin locking
Overall compressed length of 629 mm (24.74 in)

Quick facts

Part: TrakMotive NI-8606 CV axle shaft
Fits: 2009-2021 Nissan GT-R
Position: Rear
Condition: New

A clicking noise when turning, vibration under acceleration or a torn boot can mean the axle is worn, though a worn wheel bearing or an unbalanced tire can also be behind the noise or vibration. Do both rear axles in one visit; this listing is a single shaft.

Fits

This axle fits the 2009-2021 Nissan GT-R and the 2023-2024 Nissan GT-R, which each take two.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Overall compressed length: 629 mm (24.74 in)
Axle nut thread: M24x1.5
Axle nut hex size: 36 mm (1.4 in)
Outboard splines: 32

Build and materials

Inboard joint: flange, bolt-on shaft connection
Outboard joint: conventional, spline connection
Boot material: neoprene, both joints
ABS tone ring: not included
Grade type: Premium
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The ABS tone ring is not included.

Interchange: NCV53205

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV53205, NI-8606

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive NI-8606 fit the 2009-2021 Nissan GT-R?

Yes. TrakMotive NI-8606 is a rear CV axle shaft listed for the 2009-2021 Nissan GT-R, which takes two of them.

What does this TrakMotive CV axle shaft come with?

This rear axle shaft comes with its axle nut. The ABS tone ring is not included.

How long is the TrakMotive NI-8606 axle shaft?

TrakMotive NI-8606 has an overall compressed length of 629 mm (24.74 in), and its outboard end has 32 splines.

Can I keep driving with a clicking rear CV axle?

No. A clicking or vibrating axle should be checked or replaced promptly, because a failing joint can leave the wheel without drive.

Does the TrakMotive NI-8606 replace NCV53205?

Yes. NCV53205 is listed as an interchange number for this rear CV axle shaft.
