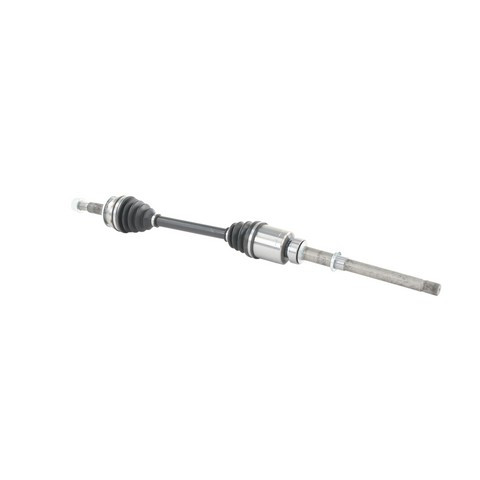

TrakMotive NI-8698 front right CV axle shaft for the 2017-2019 Nissan Qashqai and other vehicles carries drive torque to the front right wheel. Its joints flex with steering and suspension travel, so the wheel keeps turning as the angle changes.
- Cotter-pin locking style on the axle nut
- 27 splines on the inboard end and 29 splines on the outboard end
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint and conventional outboard joint
Quick facts
- Part: TrakMotive NI-8698 CV axle shaft
- Fits: 2017-2019 Nissan Qashqai and other vehicles
- Position: Front right
- Condition: New
A clicking noise on tight turns, vibration while accelerating or grease thrown from a torn boot can mean the axle is wearing. Before you replace it, rule out a worn wheel bearing, a loose wheel and a tire problem, since each can cause noise or vibration too.
Fits
This axle fits the 2017-2019 Nissan Qashqai and the 2017-2019 Nissan Rogue Sport, and each takes one on the front right. This listing is one side; the front left is its own part, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Overall compressed length: 962 mm (37.87 in)
- Axle nut thread size: M24x1.5
- Axle nut hex size: 32 mm (1.25 in)
- Inboard splines: 27
- Outboard splines: 29
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- Boot material: neoprene, inboard and outboard
- Axle nut locking type: cotter pin
- ABS tone ring: not included
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and one axle nut. The ABS tone ring is not included.
Interchange: 39100-4BB6E
NCV53198 · 391004BB1B · 391006MA1C · 391006MA1E · C91004BB6J
This part cross-references / interchanges with the following part numbers:
NCV53198, 391004BB1B, 391004BB6E, 39100-4BB6E, 391006MA1C, 391006MA1E, C91004BB6J, NI-8698
Frequently Asked Questions
Is the TrakMotive NI-8698 axle right for the 2017-2019 Nissan Rogue Sport?
Yes. TrakMotive NI-8698 is a front right CV axle shaft for the 2017-2019 Nissan Rogue Sport and the 2017-2019 Nissan Qashqai.
Does this TrakMotive CV axle come with the axle nut?
Yes. TrakMotive NI-8698 includes its axle nut, which has a cotter pin locking type. The ABS tone ring is not included.
What are the spline counts and length of the TrakMotive CV axle shaft?
This axle has 27 inboard splines and 29 outboard splines. Its overall compressed length is 962 mm (37.87 in).
How can I tell if a front CV axle boot has failed?
With the engine off, look for a torn boot and grease flung around the wheel well. A clicking noise on tight turns can also point to a worn joint, so have it checked promptly.
Does TrakMotive NI-8698 replace 391006MA1C?
Yes. 391006MA1C is among the numbers TrakMotive NI-8698 replaces; the other cross-reference numbers are on this page's Interchange line.
