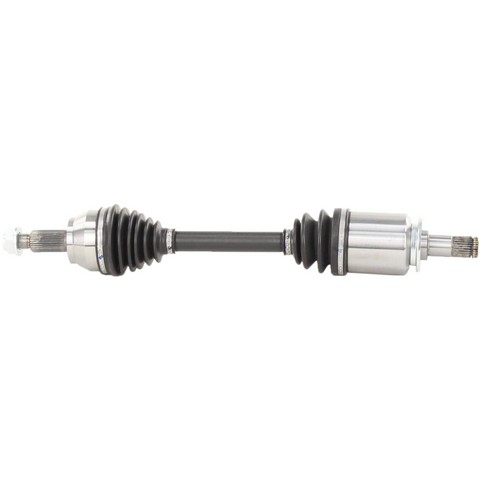

Front Left CV Axle Shaft for 2014-2020 Land Rover Range Rover Sport & More - TrakMotive RV-8017

$184.99

TrakMotive CV Axle Shaft RV-8017 - view 2

TrakMotive CV Axle Shaft RV-8017 - view 3

Part number: RV-8017

UPC: 844084081902

Condition: New

Weight: 20.20 LBS

Item Package Quantity: 1

$184.99

Current Stock: 40

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:RV-8017

$184.99

Description

TrakMotive RV-8017 front left CV axle shaft for the 2014-2020 Land Rover Range Rover Sport and other vehicles carries drive torque from the drivetrain to the wheel. Its joints let the wheel steer and move with the suspension while the shaft keeps turning.

Neoprene boots on both the inboard and outboard joints
Male inboard joint with 28-2T splines and a conventional outboard joint with 27 splines
Axle nut included, with an M24x2 thread and a 36 mm hex
Overall compressed length of 662 mm (26.06 in)

Quick facts

Part: TrakMotive RV-8017 CV axle shaft
Fits: 2014-2020 Land Rover Range Rover Sport and other vehicles
Position: Front left
Condition: New

A click when turning, vibration under load or grease thrown from a split boot can mean an axle joint is worn. With the engine off, look over both boots for tears and grease spatter before you replace anything; if this axle is the cause, this shaft replaces it. Front axles are normally replaced as a pair, but this listing is one shaft, and each front wheel takes its own.

Fits

This front left axle is a direct-fit replacement for the 2014-2020 Land Rover Range Rover Sport, the 2017-2019 Land Rover Discovery and the 2013-2019 Land Rover Range Rover.

Specifications

Fit and size

Position: front left
Quantity per application: 1
Overall compressed length: 662 mm (26.06 in)
Inboard splines: 28-2T
Outboard splines: 27
Axle nut thread size: M24x2
Axle nut hex size: 36 mm

Build and materials

Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Joint boot material: neoprene (inboard and outboard)
Axle nut locking type: stake
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front left CV axle shaft with its axle nut.

Interchange: NCV83035 · PR83035 · LR034532 · LR041970 · LR045440 · LR064252

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV83035, PR83035, LR034532, LR041970, LR045440, LR064252, RV-8017

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive RV-8017 fit the 2017-2019 Land Rover Discovery?

Yes. TrakMotive RV-8017 is a front left CV axle shaft for the 2017-2019 Land Rover Discovery, and it also fits the 2013-2019 Land Rover Range Rover.

Does this TrakMotive CV axle come with the axle nut?

Yes. The axle nut comes with the TrakMotive RV-8017, with an M24x2 thread and a 36 mm hex. The ABS tone ring is not included.

How long is this TrakMotive CV axle shaft?

The overall compressed length is 662 mm (26.06 in). The inboard end has 28-2T splines and the outboard end has 27 splines.

What are the boots on this front left CV axle made of?

Both the inboard and outboard joint boots are neoprene. The inboard joint is a male spline type, and the outboard joint is a conventional type.

Is LR034532 an interchange number for the TrakMotive RV-8017?

Yes. LR034532 is listed as an interchange number for TrakMotive RV-8017, and the full list of interchange numbers is at the bottom of the page.
