Rear CV Axle Shaft for 2007-2009 Subaru Legacy - TrakMotive SB-8129

$138.99

TrakMotive CV Axle Shaft SB-8129 - view 2

TrakMotive CV Axle Shaft SB-8129 - view 3

Part number: SB-8129

UPC: 844084089700

Condition: New

Weight: 14.10 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$138.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

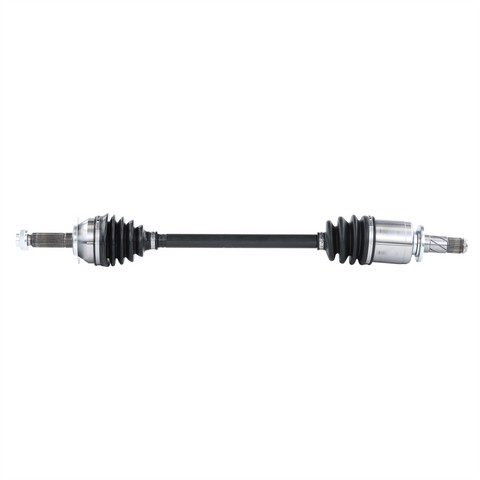

TrakMotive CV Axle Shaft P/N:SB-8129

$138.99

Description

TrakMotive SB-8129 rear CV axle shaft for the 2007-2009 Subaru Legacy carries drive torque to the rear wheel while the suspension moves. The TrakMotive CV axle replaces a rear shaft whose joints or boots have worn out.

Neoprene boots on both the inboard and outboard joints
Male inboard joint with 27 splines
Conventional outboard joint with 25 splines
Overall compressed length of 766 mm (30.16 in)

Quick facts

Part: TrakMotive SB-8129 CV axle shaft
Fits: 2007-2009 Subaru Legacy
Position: Rear
Condition: New

A torn boot with grease thrown around it, clicking in turns or vibration under acceleration can mean a worn axle joint. Worn wheel bearings, tires or other suspension parts can produce some of the same noises and vibration, so find the cause before you buy an axle.

Fits

This listing is one rear CV axle shaft for the 2007-2009 Subaru Legacy. The car takes two, one per rear wheel, so order two and fit them together when you are doing both sides.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 2
Overall compressed length: 766 mm (30.16 in)
Inboard joint: male, 27 splines
Outboard joint: conventional, 25 splines
Axle nut thread: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Boot material, inboard and outboard: neoprene
Axle nut locking type: stake
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The ABS tone ring is not included.

Interchange: NCV66077 · 28421AG0BB

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV66077, 28421AG0BB, SB-8129

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive SB-8129 rear CV axle shaft right for a 2007-2009 Subaru Legacy?

Yes. TrakMotive SB-8129 is a rear CV axle shaft for the 2007-2009 Subaru Legacy, and the car takes two, one per rear wheel.

Does the TrakMotive CV axle shaft include the axle nut?

Yes, the axle nut comes with it, with a 32 mm hex and an M22x1.5 thread. The ABS tone ring is not included.

How many splines does this rear CV axle shaft have?

TrakMotive SB-8129 has 27 splines on the male inboard joint and 25 splines on the conventional outboard joint. Its overall compressed length is 766 mm (30.16 in).

What signs can show a rear CV axle shaft is wearing out?

A torn boot with grease flung around it, clicking when turning and vibration under acceleration can all mean a worn axle joint.

Does TrakMotive SB-8129 interchange with NCV66077?

Yes. NCV66077 is listed as an interchange number for TrakMotive SB-8129.
