Front Right CV Axle Shaft for 2007-2009 Suzuki SX4 - TrakMotive SK-8088

$126.99

TrakMotive CV Axle Shaft SK-8088 - view 2

TrakMotive CV Axle Shaft SK-8088 - view 3

Part number: SK-8088

UPC: 844084032652

Condition: New

Weight: 13.20 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$126.99

Current Stock: 9

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

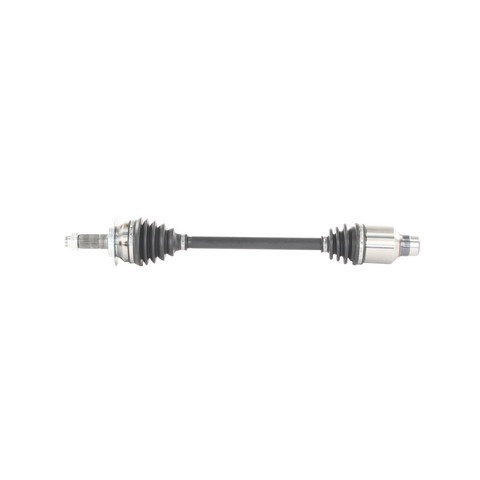

TrakMotive CV Axle Shaft P/N:SK-8088

$126.99

Description

TrakMotive SK-8088 front right CV axle shaft for the 2007-2009 Suzuki SX4 transfers drive torque to the front right wheel. This TrakMotive CV axle flexes with suspension travel and steering as it turns the wheel.

Neoprene boots on both the inboard and outboard joints
Female inboard joint with 26 splines
Conventional outboard joint with 28 splines
Axle nut included, with stake locking

Quick facts

Part: TrakMotive SK-8088 CV axle shaft
Fits: 2007-2009 Suzuki SX4
Position: Front right
Condition: New

A worn CV axle can show up as clicking on turns, grease thrown from a torn boot, or vibration under acceleration. Before you replace the axle, rule out a worn wheel bearing or a tire problem, since either can make similar noises and vibration.

Fits

It is a direct-fit CV axle replacement for the 2007-2009 Suzuki SX4, which takes one on the front right; the front left axle is a separate part ordered separately.

Specifications

Fit and size

Position: Front right
Quantity per vehicle: 1
Overall compressed length: 680 mm (26.77 in)
Inboard joint: female, 26 splines
Outboard joint: conventional, 28 splines
Axle nut thread: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Joint boots: neoprene, inboard and outboard
Axle nut locking: stake
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft and one axle nut. The ABS tone ring is not included.

Interchange: NCV68055

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV68055, SK-8088

Buyer's Q&A

Frequently Asked Questions

Can I use this as a 2008 Suzuki SX4 CV axle replacement?

Yes, TrakMotive SK-8088 is the front right axle for the 2007-2009 Suzuki SX4, which covers 2008, and the front left side is a separate part.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes, TrakMotive SK-8088 comes with its axle nut (M22x1.5 thread, 32 mm hex), but the ABS tone ring is not included.

How many splines does this front right CV axle have at each end?

The inboard end is a female joint with 26 splines, and the outboard end is a conventional joint with 28 splines.

What should I look for on the neoprene boots of this axle?

Look for tears, cracks or grease thrown around the joint, which can mean a worn boot. Clicking on turns or vibration under acceleration can be signs too, and a shop can inspect the axle.

How long is this front right CV axle shaft when compressed?

The overall compressed length is 680 mm (26.77 in).
