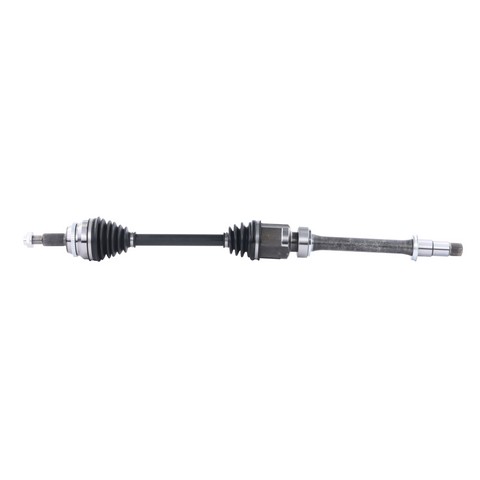

TrakMotive CV Axle Shaft P/N:TO-8164

Be the first to review this product
$127.99
MPN: TO-8164
UPC: 844084081643
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
TrakMotive CV Axle Shaft P/N:TO-8164
TrakMotive CV Axle Shaft P/N:TO-8164
$127.99

Keep power flowing from the transaxle to the wheel and address the telltale clicking of a worn CV joint with the TrakMotive CV Axle Shaft TO-8164. It installs as a direct-fit replacement for the 2005-2012 Toyota Avalon, the 2007-2012 Toyota Camry, and the 2007-2012 Lexus ES350 (all engines), transmitting torque to the wheel while accommodating suspension travel and steering angle.

  • Joints & splines: male inboard joint with 24 splines and a conventional outboard joint with 30 splines.
  • Neoprene boots: both the inboard and outboard joints use neoprene boots to retain grease and keep out contaminants.
  • ABS tone ring included: toothed ring with a 48-tooth count; per TrakMotive, ABS axles fit non-ABS applications unless otherwise noted.
  • Hardware included: a staked axle nut (M22x1.5 thread, 32 mm hex) is supplied.

This premium-grade shaft has an overall compressed length of 38.58 in (980 mm) and carries a Limited Lifetime Warranty, built by an ISO 9001:2008 and TS 16949:2009 certified company. If a failed axle is the cause of clicking on turns, grease slung from a torn boot, or vibration under acceleration, this replaces it. Country of origin: China.

Manufacturer part number TO-8164.

This part cross-references / interchanges with the following part numbers:

652458, 80-4780, 329164, 60-5280, 60-5286, 60-5391, TO-2210A, 80-6274, NCV69614, 90015, 99533, 99737, 40751116, TO-8-8620A, 4341006560, 4341006780, 4341007070, 4341007071, 434100W180, MX-19706S, TO-8164, 7087799, AX-87799

Frequently Asked Questions

What vehicles does this CV axle fit?

It's a direct-fit replacement for the 2005-2012 Toyota Avalon, 2007-2012 Toyota Camry, and 2007-2012 Lexus ES350 (all engines). See the Buyer's Guide tab to confirm your vehicle.

Does it include an axle nut?

Yes. A staked axle nut with an M22x1.5 thread and 32 mm hex is included. Consult the vehicle service information for the correct torque and whether the nut may be reused.

Does it have an ABS tone ring?

Yes, it includes a toothed ABS tone ring with a 48-tooth count. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted.

What are the signs my CV axle may need replacing?

Clicking or popping during turns, a torn boot slinging grease, or vibration under acceleration are common signs. Diagnose the cause before replacing, as these can have other sources.

What warranty does this axle carry?

It carries a Limited Lifetime Warranty and is built by an ISO 9001:2008 and TS 16949:2009 certified company.
