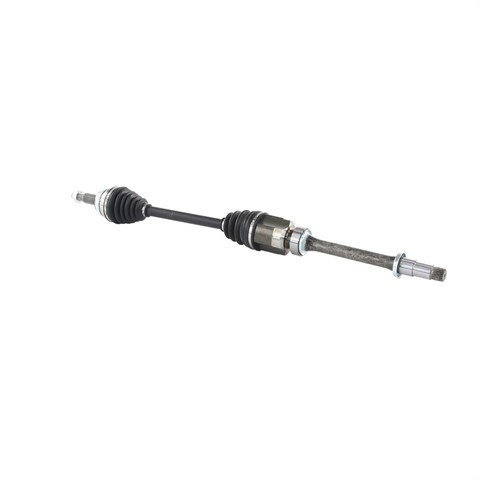

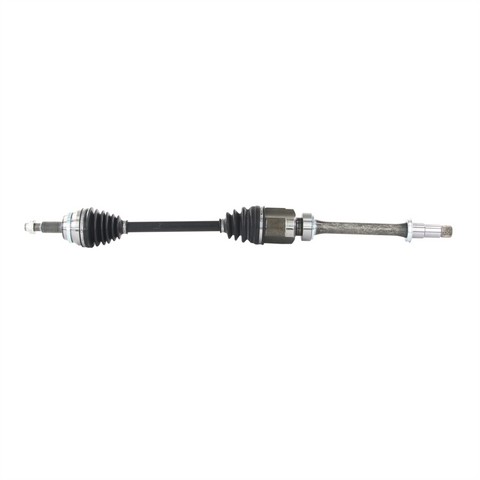

Transfer torque from the transaxle to the front right wheel with the TrakMotive CV Axle Shaft TO-8184, a direct-fit replacement for the 2004-2010 Toyota Sienna (All engines). Its constant-velocity joints let the axle deliver power to the wheel while the front suspension travels and the wheels steer.
Clicking during turns, vibration under acceleration, or grease flung from a torn boot are signs the original front right axle may need replacing; diagnose the cause before ordering. Country of origin: China.
Interchange: NCV69608 · 652478 · 329184 · 66-5261 · 665261 · 60-5261 · 605261 · TO-2208A · TO2208A · 80-6326 · 806326 · 90658 · 99703 · 40751040 · TO-8-8647A · TO88647A · 4341008030 · TO10537 · MX-19716S · MX19716S · 7087769 · AX-87769 · AX87769 · Manufacturer part number TO-8184 (also TO8184)
This part cross-references / interchanges with the following part numbers:
What vehicle does the TrakMotive TO-8184 CV axle fit?
It is a direct-fit replacement for the front right position on the 2004-2010 Toyota Sienna (All engines).
Is the axle nut included?
Yes. An axle nut is included, with an M22x1.5 thread, a 32 mm hex, and a stake locking type.
Does this axle have an ABS tone ring?
Yes, it includes a toothed ABS tone ring with a 48-tooth count. ABS axles fit non-ABS applications unless otherwise noted.
How many splines does it have?
The male inboard joint has 24 inboard splines and the conventional outboard joint has 30 outboard splines.
What are signs my CV axle may need replacing?
Clicking during turns, vibration under acceleration, or grease thrown from a torn boot can indicate a worn CV axle; diagnose the cause before replacing.
