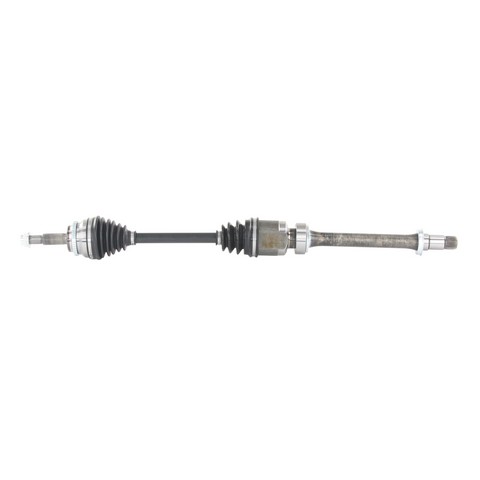

TrakMotive TO-8214 front right CV axle shaft for the 2007-2009 Toyota Camry carries drive torque from the transmission to the wheel. This TrakMotive CV axle shaft keeps turning the wheel while the suspension moves and the wheel steers.
- Toothed ABS tone ring with 48 teeth included
- Neoprene boots on the inboard and outboard joints
- Axle nut included, with stake-type locking
- 24-spline male inboard joint and 26-spline conventional outboard joint
Quick facts
- Part: TrakMotive TO-8214 CV axle shaft
- Fits: 2007-2009 Toyota Camry
- Position: Front right
- Condition: New
A clicking or popping noise on turns, grease thrown from a torn boot, or a vibration while driving can mean the axle is worn. A wheel bearing, a tie rod end or a strut mount can be behind similar signs, so find the cause before buying. Each front wheel takes one axle; this listing is the front right, and the front left is ordered separately.
Fits
It fits the 2007-2009 Toyota Camry as a front right CV axle replacement. This ABS axle also fits non-ABS applications unless otherwise noted.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Overall compressed length: 968 mm (38.11 in)
- Inboard splines: 24
- Outboard splines: 26
- Axle nut thread: M22x1.5
- Axle nut hex: 32 mm (1.25 in)
Build and materials
- ABS tone ring: included, toothed, 48 teeth
- Boot material: neoprene
- Grade: Premium
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut and toothed ABS tone ring.
Interchange: 66-5247HD · 60-5275 · TO-2216A · 80-6284 · 80-6286 · TO-8-8664A · AX-62849 · AX-62869
652486 · 329214 · NCV69629 · 90122 · 90679 · 99522 · 40751112 · 4341006670 · 4341033290 · TO10507 · 7027399
This part cross-references / interchanges with the following part numbers:
652486, 329214, 66-5247HD, 60-5275, TO-2216A, 80-6284, 80-6286, NCV69629, 90122, 90679, 99522, 40751112, TO-8-8664A, 4341006670, 4341033290, TO10507, TO-8214, 7027399, AX-62849, AX-62869
Frequently Asked Questions
Is this a 2008 Toyota Camry CV axle replacement?
Yes. TrakMotive TO-8214 is the front right CV axle shaft for the 2007-2009 Toyota Camry, so a 2008 model is covered.
Can the TrakMotive TO-8214 work as a 2007 Toyota Camry CV axle replacement on the left side?
No. TO-8214 is the front right axle for the 2007-2009 Toyota Camry; the front left takes its own separate axle.
Does the TrakMotive TO-8214 come with an ABS tone ring and axle nut?
Yes. TrakMotive TO-8214 includes a toothed ABS tone ring with 48 teeth and an axle nut (M22x1.5 thread, 32 mm hex, stake locking).
How many splines does this front right CV axle shaft have?
It has 24 inboard splines and 26 outboard splines, with an overall compressed length of 968 mm (38.11 in).
What can a torn boot on this CV axle shaft mean?
A torn neoprene boot lets grease out and dirt in, and the joint can wear as a result. Clicking on turns can be another sign; look over the boots by eye with the engine off and the vehicle parked.
