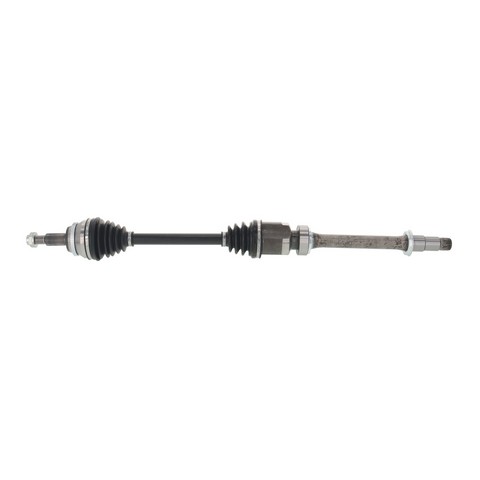

TrakMotive TO-8237 front right CV axle shaft for the 2008-2019 Toyota Highlander and other vehicles carries drive torque from the transmission to the wheel. Its joints flex with steering and suspension movement while the shaft keeps turning.
A clicking or popping noise in turns, grease thrown from a torn boot or vibration under acceleration can mean the axle is worn. Before you replace it, rule out a wheel bearing or tire problem that makes similar noises. This listing is one axle for the front right; the front left is a separate part, and the pair is normally replaced together. The 2008-2019 Toyota Highlander takes one on this side.
It fits the 2008-2019 Toyota Highlander, the 2009-2016 Toyota Venza and the 2010-2015 Lexus RX350.
Fit and size
Build and materials
One CV axle shaft with its axle nut and toothed ABS ring.
Interchange: 66-5305 · 60-5305 · TO-2710A · 80-6328 · 80-6332 · 80-6342 · TO-8-8745A · AX-63289 · AX-63429
329237 · NCV69128 · NCV69167 · 90565 · 40751133 · 434100W190 · 434100W240 · TO10566
This part cross-references / interchanges with the following part numbers:
Does the TrakMotive CV axle shaft TO-8237 fit the 2009-2016 Toyota Venza?
Yes. TrakMotive TO-8237 fits the 2009-2016 Toyota Venza on the front right side.
Does this TrakMotive CV axle come with the axle nut?
Yes. TrakMotive TO-8237 includes the axle nut (M22x1.5 thread, 32 mm hex, stake locking) and a toothed ABS ring with 48 teeth.
How long is this front right axle shaft, and how many splines does it have?
Overall compressed length is 993 mm (39.09 in). The shaft has 24 inboard splines and 30 outboard splines.
How can I tell if the boots or joints on this CV axle are wearing out?
Look for torn neoprene boots with grease thrown around them, and listen for clicking when turning. A shop can confirm joint wear.
Does TrakMotive TO-8237 cross-reference to NCV69128?
Yes. NCV69128 is among the numbers TrakMotive TO-8237 replaces, along with 66-5305 and 434100W190.
