TrakMotive CV Axle Shaft P/N:TO-8248

Be the first to review this product
$167.99
MPN: TO-8248
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
TrakMotive CV Axle Shaft P/N:TO-8248
TrakMotive CV Axle Shaft P/N:TO-8248
$167.99

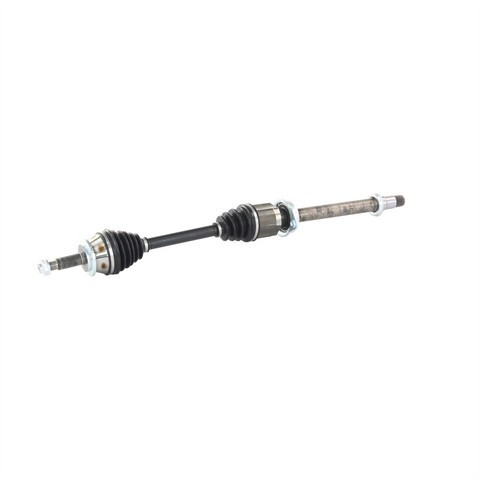

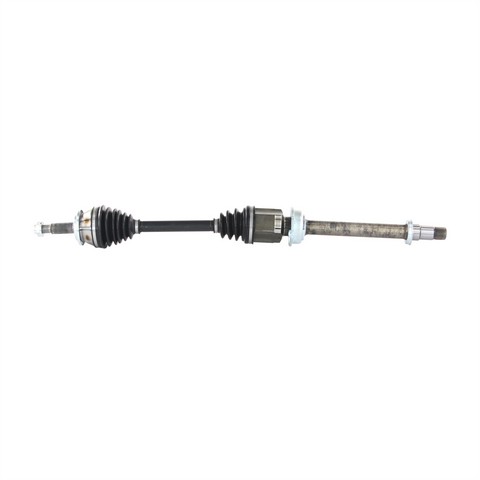

Send steady torque from the transaxle to the front wheel with the TrakMotive CV Axle Shaft TO-8248. It drops in as a direct-fit replacement for the 2008-2015 Scion xB [All], seating in the front right (passenger-side) position to transmit rotation from the transaxle to the wheel hub through its constant-velocity joints while accommodating suspension travel and steering angle. This is a premium-grade assembly built to keep the front driveline turning smoothly.

  • Joint boots: Neoprene inboard and outboard joint boots seal in grease and keep contaminants out of the CV joints.
  • Splines & joints: 24 inboard splines with a male inboard joint, and 26 outboard splines with a conventional outboard joint.
  • Axle nut included: ships with a staked axle nut, M22x1.5 thread, 32 mm hex.
  • Fitment specs: overall compressed length 37.56 in (954 mm); ABS tone ring not included.
  • Backed by a Limited Lifetime Warranty from an ISO 9001:2008 and TS 16949:2009 certified company.

Interchange: 329248 · 66-5282 · 665282 · 60-5282 · 605282 · TO-2716 · TO2716 · 80-6299 · 806299 · NCV69543 · 90232 · 40751121 · TO-8-8714 · TO88714 · 4341012820 · 4341012821 · SC10506 · AX-6211 · AX6211 · Manufacturer part number TO-8248.

Country of origin: China.

This part cross-references / interchanges with the following part numbers:

329248, 66-5282, 60-5282, TO-2716, 80-6299, NCV69543, 90232, 40751121, TO-8-8714, 4341012820, 4341012821, SC10506, TO-8248, AX-6211

Frequently Asked Questions

What vehicle does this CV axle fit?

It's a direct-fit front right replacement for the 2008-2015 Scion xB [All]. Check the Buyer's Guide tab to confirm it matches your vehicle.

Which position does the TO-8248 install in?

It installs in the front right (passenger-side) position. It is sold individually as one axle shaft.

Is the axle nut included?

Yes. It ships with a staked axle nut, M22x1.5 thread size and 32 mm hex.

Does it include an ABS tone ring?

No, the ABS tone ring is not included. Per the manufacturer, ABS axles fit non-ABS applications unless otherwise noted.

What are signs my CV axle may need replacing?

Clicking or popping during turns, vibration under acceleration, or grease slung from a torn boot. Diagnose the cause first; if the axle is at fault, this replaces it.
