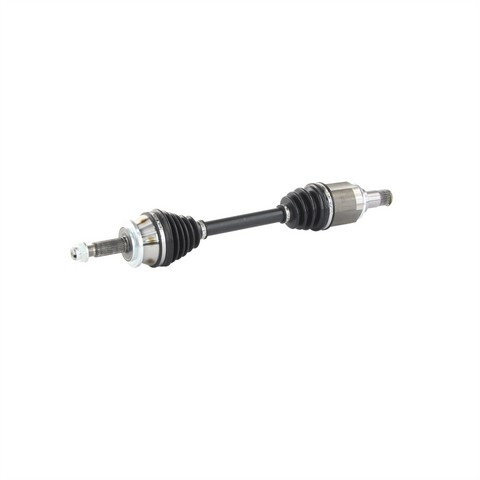

Front Left CV Axle Shaft for 2008-2015 Scion xB - TrakMotive TO-8249

$137.99

TrakMotive CV Axle Shaft TO-8249 - view 2

TrakMotive CV Axle Shaft TO-8249 - view 3

TrakMotive CV Axle Shaft TO-8249 - view 4

Part number: TO-8249

UPC: 844084082480

Condition: New

Weight: 15.40 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$137.99

Current Stock: 60

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:TO-8249

$137.99

Description

TrakMotive TO-8249 front left CV axle shaft for the 2008-2015 Scion xB turns the wheel as the suspension moves. This TrakMotive CV axle joins the drivetrain to the wheel and bends with steering and suspension travel.

Male inboard joint with 24 splines
Conventional outboard joint with 26 splines
Neoprene boots on both the inboard and outboard joints
Axle nut with M22x1.5 thread and 32 mm hex, locked by staking

Quick facts

Part: TrakMotive TO-8249 CV axle shaft
Fits: 2008-2015 Scion xB
Position: Front left
Condition: New

A clicking or popping noise in turns, grease thrown from a torn boot, or vibration under acceleration can mean this axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind them too. The 2008-2015 Scion xB takes one front left axle; the front right is a separate part ordered on its own.

Fits

This is a direct-fit replacement CV axle for the 2008-2015 Scion xB, sold as a single front left shaft.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1
Overall compressed length: 638 mm (25.12 in)
Inboard splines: 24
Outboard splines: 26
Axle nut thread size: M22x1.5
Axle nut hex size: 32 mm (1.25 in)

Build and materials

Inboard joint: male
Outboard joint: conventional
Joint boot material: neoprene
Axle nut locking type: stake
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front left CV axle shaft with its axle nut.

Interchange: 66-5281 · 60-5281 · TO-2715 · 80-6212 · TO-8-8713 · AX-6210
329249 · NCV69542 · 90230 · 40751122 · 4342012760 · 4342012761 · SC10505

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

329249, 66-5281, 60-5281, TO-2715, 80-6212, NCV69542, 90230, 40751122, TO-8-8713, 4342012760, 4342012761, SC10505, TO-8249, AX-6210

Buyer's Q&A

Frequently Asked Questions

Is this the CV axle for a 2008 Scion xB in the 2008-2015 range?

Yes. TrakMotive TO-8249 is the front left axle for the 2008-2015 Scion xB, so a 2008 model is covered.

Does the TrakMotive CV axle shaft come with the axle nut?

Yes. TrakMotive TO-8249 includes the axle nut, an M22x1.5 hex nut with a 32 mm socket size and a stake lock. The ABS tone ring is not included.

How long is this front left axle, and how many splines does it have?

It measures 638 mm (25.12 in) compressed. The male inboard joint has 24 splines and the conventional outboard joint has 26.

Does the TO-2715 number cross to TrakMotive TO-8249?

Yes. TO-2715 is one of the numbers this front left axle replaces, and the rest are on the Interchange line.

Is the TrakMotive TO-8249 axle covered by a warranty?

Yes. TrakMotive backs this CV axle shaft with a limited lifetime warranty.
