Front CV Axle Shaft for 2007-2021 Toyota Tundra & More - TrakMotive TO-8250XTT

$250.99

TrakMotive CV Axle Shaft TO-8250XTT - view 2

TrakMotive CV Axle Shaft TO-8250XTT - view 3

TrakMotive CV Axle Shaft TO-8250XTT - view 4

TrakMotive CV Axle Shaft TO-8250XTT - view 5

Part number: TO-8250XTT

UPC: 195013042663

Condition: New

Weight: 22.70 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$250.99

Current Stock: 206

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

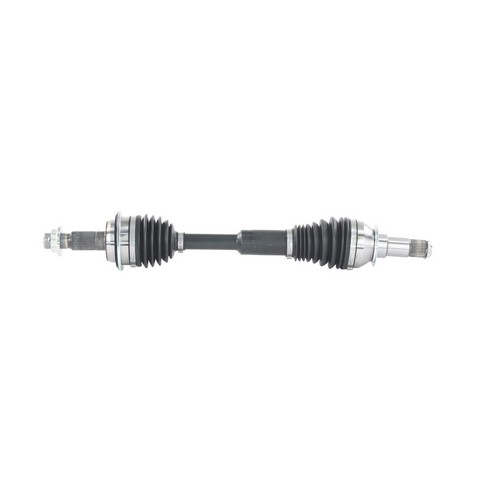

TrakMotive CV Axle Shaft P/N:TO-8250XTT

$250.99

Description

TrakMotive TO-8250XTT front CV axle shaft for the 2007-2021 Toyota Tundra and other vehicles passes drive torque to the front wheel while the suspension moves. This TrakMotive CV axle is an extended travel shaft; a typical OE CV joint tops out at 23 degrees of articulation.

Sliding center bar adds up to 44 mm of axle travel
CV joints articulate up to 47 degrees
Thermoplastic boots on the inboard and outboard joints
34 inboard splines and 36 outboard splines

Quick facts

Part: TrakMotive TO-8250XTT CV axle shaft
Fits: 2007-2021 Toyota Tundra and other vehicles
Position: Front
Condition: New

Torn boots with grease around the wheel, a clicking noise in tight turns or vibration under acceleration can mean this CV axle shaft is worn, though a worn wheel bearing or an out-of-balance tire can produce similar noise and vibration, so find the cause first.

Fits

It fits the 2007-2021 Toyota Tundra and the 2008-2022 Toyota Sequoia, and each of them takes two shafts. This listing is one shaft, so order two and fit them together.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Overall compressed length: 705 mm (27.76 in)
Axle nut thread size: M32x1.5
Axle nut hex size: 39 mm (1.53 in)
Splines: 34 inboard, 36 outboard

Build and materials

Inboard joint: male
Outboard joint: conventional
Boot material: thermoplastic, inboard and outboard
ABS tone ring: not included
Condition: New
Country of origin: China

In the box

One CV axle shaft and one axle nut.

Interchange: NCV69164XDP

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV69164XDP, TO-8250XTT

Buyer's Q&A

Frequently Asked Questions

Does TrakMotive TO-8250XTT work as a CV axle shaft for the 2007-2021 Toyota Tundra?

Yes. TrakMotive TO-8250XTT is a front CV axle shaft for the 2007-2021 Toyota Tundra and the 2008-2022 Toyota Sequoia.

What makes this TrakMotive CV axle shaft an extended travel design?

The sliding center bar on TrakMotive TO-8250XTT gives up to 44 mm more travel than an OEM CV shaft, and its joints can reach up to a 47 degree articulation angle.

Does this CV axle shaft come with the axle nut?

Yes, the axle nut is included (M32x1.5 thread, 39 mm hex). The ABS tone ring is not included.

How can I tell if a front CV axle shaft boot has gone bad?

A split boot with grease thrown around the wheel, or a clicking noise in tight turns, can be signs of a worn joint. Look at the boots with the engine off and let a shop inspect anything further.

What is the axle nut thread size on this front CV axle shaft?

The axle nut is M32x1.5 with a 39 mm hex. TrakMotive TO-8250XTT measures 705 mm (27.76 in) in overall compressed length.
