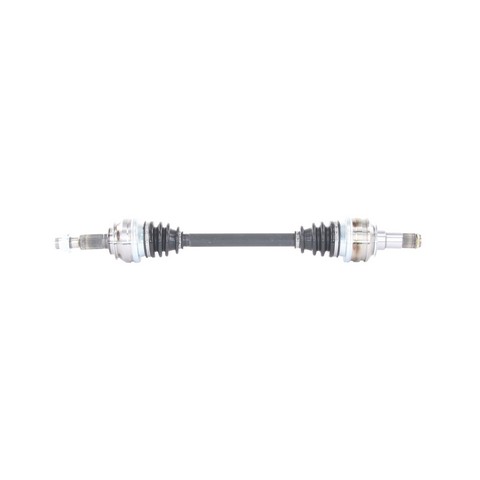

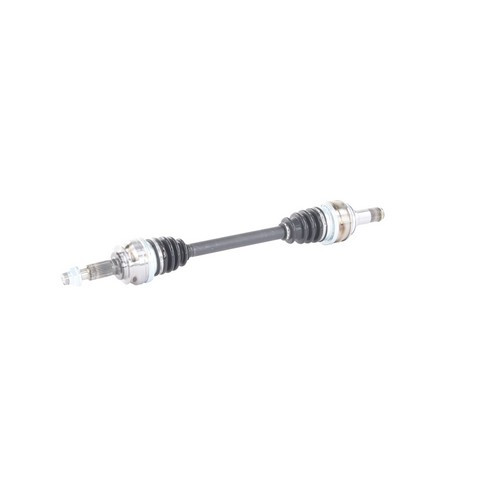

Rear Left CV Axle Shaft for 2006-2013 Lexus IS250 - TrakMotive TO-8297

$178.99

TrakMotive CV Axle Shaft TO-8297 - view 2

TrakMotive CV Axle Shaft TO-8297 - view 3

TrakMotive CV Axle Shaft TO-8297 - view 4

TrakMotive CV Axle Shaft TO-8297 - view 5

TrakMotive CV Axle Shaft TO-8297 - view 6

Part number: TO-8297

UPC: 844084082978

Condition: New

Weight: 19.30 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$178.99

Current Stock: 36

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:TO-8297

$178.99

Description

TrakMotive TO-8297 rear left CV axle shaft for the 2006-2013 Lexus IS250 carries drive torque to the wheel while its joints flex with suspension travel.

Neoprene boots on both the inboard and outboard joints
Male inboard joint and conventional outboard joint, with 30 splines at each end
Axle nut included, with M26x1.5 thread and a 35 mm hex
Overall compressed length of 770 mm (30.31 in)

Quick facts

Part: TrakMotive TO-8297 CV axle shaft
Fits: 2006-2013 Lexus IS250
Position: Rear left
Condition: New

Clicking on turns, grease around a torn boot or vibration under acceleration can mean the CV axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind them, so find the real cause before replacing it. Rear axles are normally changed as a pair, left and right. This listing is one axle for the rear left; the rear right is its own part, one per side.

Fits

This TrakMotive CV axle is a direct-fit replacement for the 2006-2013 Lexus IS250.

Specifications

Fit and size

Position: Rear left
Quantity per application: 1
Overall compressed length: 770 mm (30.31 in)
Axle nut thread size: M26x1.5
Axle nut hex size: 35 mm (1.33 in)
Splines: 30 inboard, 30 outboard

Build and materials

Inboard joint: male
Outboard joint: conventional
Joint boot material: neoprene, inboard and outboard
Axle nut locking type: stake
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One rear left CV axle shaft and one axle nut.

Interchange: 66-5329 · 60-5330
329297 · NCV69045 · 4234022180 · 4234022181

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

329297, 66-5329, 60-5330, NCV69045, 4234022180, 4234022181, TO-8297

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive TO-8297 the right CV axle for a 2006-2013 Lexus IS250?

Yes. TrakMotive TO-8297 is a rear left CV axle shaft for the 2006-2013 Lexus IS250, with 30 splines at each end and an M26x1.5 axle nut.

Does the TrakMotive CV axle shaft come with its axle nut?

Yes. The axle nut is included, with M26x1.5 thread and a 35 mm hex, and it locks by staking. The ABS tone ring is not included.

What are the CV joint boots on the TO-8297 made of?

Both the inboard and outboard joint boots are neoprene.

What should I look for on a rear CV axle that is wearing out?

Cracks or tears in the boot, grease flung around it, and a clicking noise on turns are common signs. A shop can confirm what is behind them.

Is 329297 a cross-reference for TrakMotive TO-8297?

Yes. 329297 is one of the cross-reference numbers for TrakMotive TO-8297; the rest are on the Interchange line of this page.
