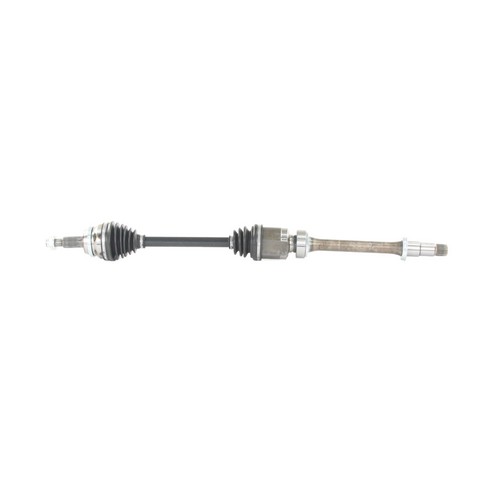

TrakMotive TO-8300 front right CV axle shaft for the 2012-2017 Toyota Camry and other vehicles carries drive torque to the front right wheel. This TrakMotive CV axle shaft flexes at its inboard and outboard joints as the suspension moves.
- Neoprene boots on both the inboard and outboard joints
- Axle nut included, with a stake locking type
- Toothed ABS tone ring included, 48 teeth
- Male inboard joint and conventional outboard joint
Quick facts
- Part: TrakMotive TO-8300 CV axle shaft
- Fits: 2012-2017 Toyota Camry and other vehicles
- Position: Front right
- Condition: New
A clicking noise on turns, vibration under acceleration or grease thrown from a torn boot can mean a worn CV axle shaft. Before buying, look over the joint boots for tears with the engine off, because other parts can make similar noises. If the CV axle shaft is the cause, this one replaces it. Both front CV axle shafts are normally replaced together, and this listing covers only the front right.
Fits
It is a direct-fit CV axle replacement for the 2012-2017 Toyota Camry and the 2013-2018 Toyota Avalon.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Overall compressed length: 986 mm (38.82 in)
- Inboard splines: 24
- Outboard splines: 30
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- ABS tone ring: included, toothed, 48 teeth
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One front right CV axle shaft with its axle nut and ABS tone ring. This listing holds one CV axle shaft, and the front right position takes one; the front left is a separate part.
Interchange: 329300 · NCV69058 · 90850 · 40751153 · 4341006740 · 4341006A20 · TO10054
This part cross-references / interchanges with the following part numbers:
329300, NCV69058, 90850, 40751153, 4341006740, 4341006A20, TO10054, TO-8300
Frequently Asked Questions
Is this a CV axle replacement for a 2016 Toyota Camry?
Yes. TrakMotive TO-8300 fits the 2012-2017 Toyota Camry, so a 2016 model is covered. It is the front right axle shaft.
Is TrakMotive TO-8300 a 2012 Toyota Camry CV axle replacement for the front right?
Yes. TrakMotive TO-8300 is made for the front right of the 2012-2017 Toyota Camry, which includes 2012. The front left is a separate part.
Does this TrakMotive CV axle come with the axle nut?
Yes. TrakMotive TO-8300 includes its axle nut, a 32 mm hex with an M22x1.5 thread and a stake locking type, along with the ABS tone ring.
How many splines does this CV axle shaft have, and how long is it?
This CV axle shaft has 24 inboard splines and 30 outboard splines. Its overall compressed length is 986 mm (38.82 in).
Can I keep driving with a clicking front CV axle?
No. A click on turns or vibration while accelerating can come from a worn CV axle, among other things, so have it checked or replaced promptly.
