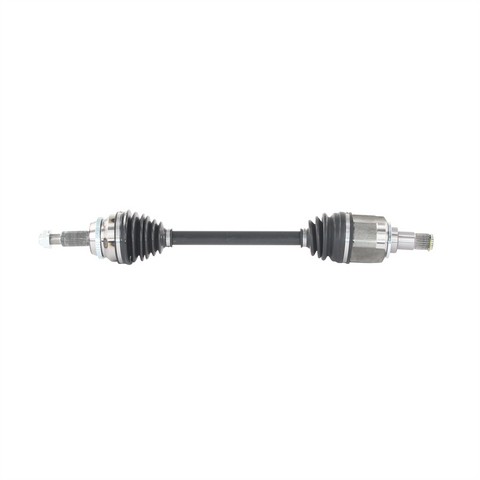

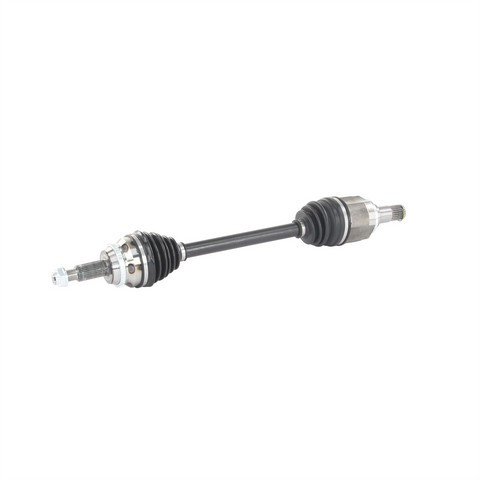

TrakMotive CV Axle Shaft P/N:TO-8333

Keep power flowing to the front wheel through every turn with the TrakMotive CV Axle Shaft (MPN TO-8333). This complete axle assembly transmits engine torque from the transaxle to the wheel hub while its constant-velocity joints let the axle flex with steering and suspension travel. It installs as a direct-fit replacement in the front-left position on the 2011-2016 Toyota Sienna (All), so it drops into the listed applications without guesswork.

• Sealed CV joints: neoprene inboard and outboard joint boots protect the grease-packed joints.
• ABS-ready: includes a toothed ABS tone ring with a 48-tooth count; per TrakMotive, ABS axles fit non-ABS applications unless otherwise noted.
• Hardware included: a stake-type axle nut is included, with an M22x1.5 thread and 30 mm hex (1.17 in).
• Spline detail: 24-spline male inboard joint and a 30-spline conventional outboard joint; overall compressed length 28.43 in (722 mm).

Built to a Premium grade by an ISO 9001:2008 and TS 16949:2009 certified company and backed by a Limited Lifetime Warranty. Common signs a CV axle may need replacing include clicking or popping during turns, vibration under acceleration, and grease slung from a torn boot. Country of origin: China.

Interchange: 329333 · 66-5397 · 665397 · NCV69055 · NCV69189 · 90966 · 40751144 · TO-8-8853A · TO88853A · 4342008050 · TO10060
Manufacturer part number TO-8333.
