Rear Left CV Axle Shaft for 1993-1998 Toyota Supra - TrakMotive TO-8416

$235.99

TrakMotive CV Axle Shaft TO-8416 - view 2

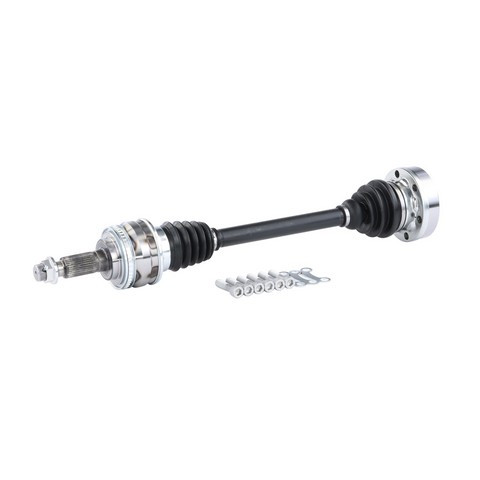

TrakMotive CV Axle Shaft TO-8416 - view 3

Part number: TO-8416

UPC: 844084043092

Condition: New

Weight: 21.20 LBS

Item Package Quantity: 1

$235.99

Current Stock: 7

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

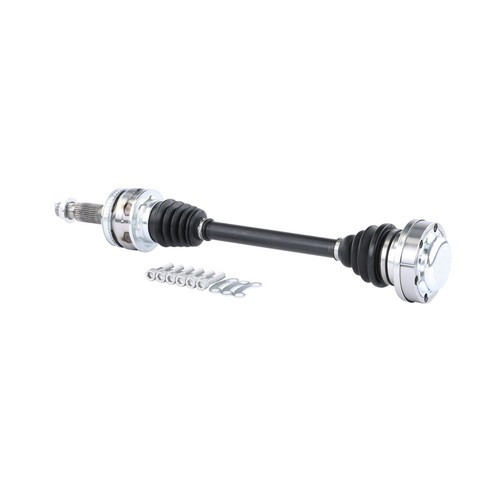

TrakMotive CV Axle Shaft P/N:TO-8416

$235.99

Description

TrakMotive TO-8416 rear left CV axle shaft for the 1993-1998 Toyota Supra carries drive torque to the rear left wheel while the suspension moves. This TrakMotive CV axle is a single shaft for the left side of the rear axle.

Bolt-on inboard joint with six bolt holes for M12x1.25 Allen-head bolts
Conventional outboard joint with 30 splines
Neoprene boots on the inboard and outboard joints
Toothed ABS tone ring with 48 teeth included
Axle nut included, M26x1.5 thread with a 32 mm hex

Quick facts

Part: TrakMotive TO-8416 CV axle shaft
Fits: the 1993-1998 Toyota Supra
Position: Rear left
Condition: New

A clicking noise in turns, vibration while driving or a torn boot with grease thrown around it can mean the axle is wearing. A worn wheel bearing, an out-of-balance tire or a worn suspension bushing can cause similar noise and vibration, so find the cause before buying an axle.

Fits

This axle is a direct-fit replacement for the 1993-1998 Toyota Supra. The 1993-1998 Toyota Supra takes one at this rear left position, and the rear right axle is a separate part ordered on its own.

Specifications

Fit and size

Position: Rear left
Quantity per vehicle: 1
Overall compressed length: 653 mm (25.71 in)
Axle nut: M26x1.5 thread, 32 mm (1.25 in) hex
Inboard joint: 6 bolt holes, M12x1.25 Allen-head bolts
Outboard splines: 30

Build and materials

Joint types: bolt-on inboard, conventional outboard
Joint boots: Neoprene
ABS tone ring: included, toothed, 48 teeth
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut and ABS tone ring.

Interchange: 329416 · 4234014140

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

329416, 4234014140, TO-8416

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive TO-8416 the right rear left CV axle shaft for the 1993-1998 Toyota Supra?

Yes. TrakMotive TO-8416 fits the 1993-1998 Toyota Supra on the rear left side. The rear right axle is a separate part.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes. TrakMotive TO-8416 includes the axle nut and a toothed ABS tone ring. The nut has an M26x1.5 thread and a 32 mm hex.

How long is the TO-8416 axle?

This rear left axle measures 653 mm (25.71 in) in overall compressed length. Its outboard joint has 30 splines and its inboard joint has six bolt holes.

How can I tell if a rear CV axle is wearing out?

A torn boot with grease around it, clicking in turns or vibration while driving can mean the joint is wearing. A shop can confirm the cause.

Does TrakMotive TO-8416 replace number 4234014140?

Yes. 4234014140 is listed as an interchange number for TrakMotive TO-8416, along with 329416.
