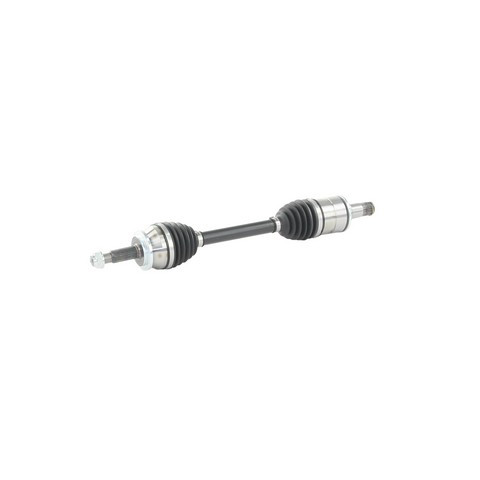

Front Left CV Axle Shaft for 2018-2024 Toyota Camry & More - TrakMotive TO-86011

$140.99

TrakMotive CV Axle Shaft TO-86011 - view 2

TrakMotive CV Axle Shaft TO-86011 - view 3

TrakMotive CV Axle Shaft TO-86011 - view 4

Part number: TO-86011

UPC: 840140508154

Condition: New

Weight: 16.70 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$140.99

Current Stock: 9

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:TO-86011

$140.99

Description

TrakMotive TO-86011 front left CV axle shaft for the 2018-2024 Toyota Camry and other vehicles carries drive torque to the front left wheel. Its joints let the wheel turn and move with the suspension while it keeps driving.

Male inboard joint with 24 splines
Conventional outboard joint with 26 splines
Overall length of 661 mm compressed and 713 mm extended
Axle nut thread of M22x1.5 with a 32 mm hex

Quick facts

Part: TrakMotive TO-86011 CV axle shaft
Fits: 2018-2024 Toyota Camry and other vehicles
Position: Front left
Condition: New

A clicking or popping noise on turns, grease flung from a torn boot or a vibration at speed can mean a CV axle is wearing. A wheel bearing, an out-of-balance tire or a worn engine mount can produce noise or vibration too, so find the source before you buy an axle.

Fits

This CV axle replacement for the 2018-2024 Toyota Camry also fits the 2019-2024 Toyota RAV4 and the 2021 Toyota Avalon.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1 (this side)
Overall compressed length: 661 mm (26 in)
Overall extended length: 713 mm (28.06 in)
Inboard splines: 24
Outboard splines: 26
Axle nut thread: M22x1.5, 32 mm hex

Build and materials

Inboard joint type: male
Outboard joint type: conventional
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front left CV axle shaft; the front left takes one. The front right is a separate part ordered on its own, and both sides are normally replaced together. The axle nut is not included, so plan on a new one, since the old nut may not be reusable.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

TO-86011

Buyer's Q&A

Frequently Asked Questions

Is this the 2018-2024 Toyota Camry CV axle shaft for the front left side?

Yes. TrakMotive TO-86011 is the front left CV axle shaft for the 2018-2024 Toyota Camry. The front right side is a separate part.

Is this a 2018-2024 Toyota Camry CV axle replacement that also fits the 2019-2024 Toyota RAV4?

Yes. TrakMotive TO-86011 fits the 2019-2024 Toyota RAV4 as well, in the front left position.

Does this TrakMotive CV axle shaft come with the axle nut?

No. The axle nut is not included, and neither is the ABS tone ring. This listing is one front left axle shaft.

What spline counts and nut thread does this TrakMotive CV axle have?

TrakMotive TO-86011 has 24 inboard splines and 26 outboard splines. Its axle nut thread is M22x1.5 with a 32 mm hex.

How do I check the boots on a front left CV axle shaft?

With the engine off and cool, look at the boots at both ends for tears or flung grease. A torn boot lets grease out and dirt in, and a shop can check joint play.
