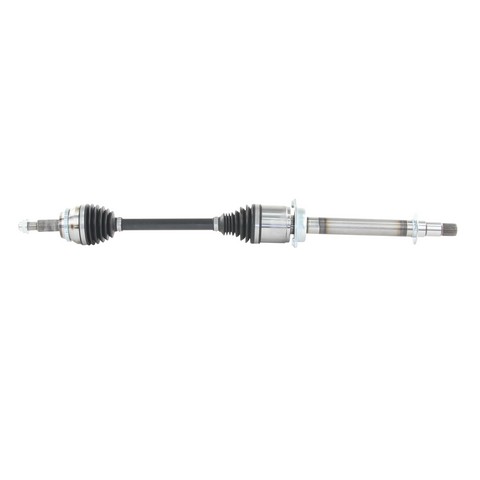

TrakMotive TO-86020 front right CV axle shaft for the 2017-2019 Toyota Highlander carries drive to the front right wheel through a joint at each end. This listing is a single TrakMotive CV axle for the front right side.
A clicking noise when turning, a torn boot with grease thrown around the joint, or a vibration under acceleration can mean an axle is worn. These signs alone do not prove the axle is the problem, since a worn wheel bearing can also make noise from the wheel area.
This axle shaft is a direct-fit replacement for the 2017-2019 Toyota Highlander. For the front left of that Highlander, order the left axle on its own.
Fit and size
Build and materials
One front right CV axle shaft with its ABS tone ring. The axle nut is not included, so plan on a new one.
Interchange: NCV69251
This part cross-references / interchanges with the following part numbers:
Does the TrakMotive TO-86020 fit the 2017-2019 Toyota Highlander?
Yes. TrakMotive TO-86020 is the front right CV axle shaft for the 2017-2019 Toyota Highlander. The front left side is a separate part.
Does the TrakMotive TO-86020 come with the axle nut?
No. The axle nut is not included with TrakMotive TO-86020. The nut is M22x1.5 thread with a 32 mm hex, so plan on getting a new one.
Does this TrakMotive CV axle shaft include the ABS tone ring?
Yes. The ABS tone ring is included and has 48 teeth.
How long is this front right CV axle shaft?
The overall compressed length is 998 mm (39.31 in). It has 24 splines at the inboard end and 30 splines at the outboard end.
Does the TrakMotive TO-86020 replace NCV69251?
Yes. NCV69251 is listed as an interchange number for TrakMotive TO-86020.
