TrakMotive CV Axle Shaft P/N:TO-86031

$150.99

Description

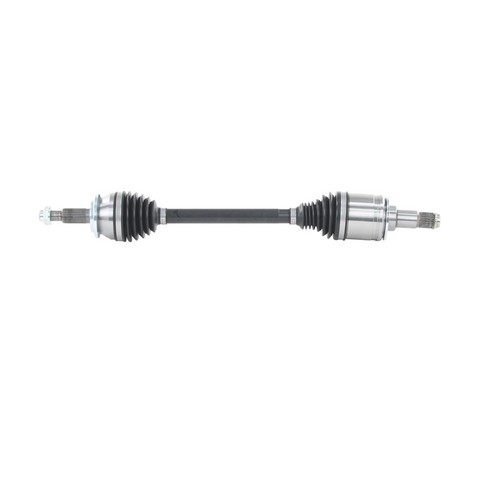

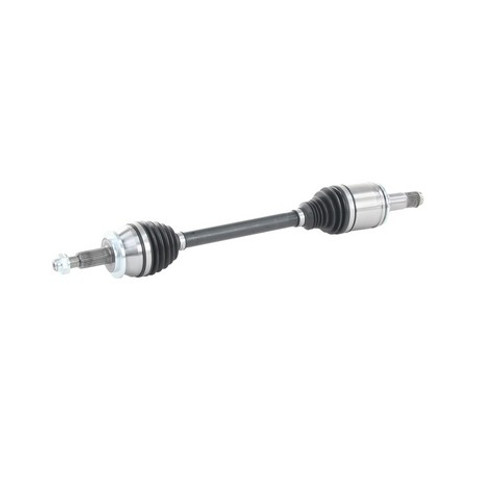

TrakMotive TO-86031 front left CV axle shaft for the 2021-2022 Toyota Sienna sends drive power to the front left wheel and flexes with the suspension. This TrakMotive CV axle covers the front left side only.

Thermoplastic boots on both the inboard and outboard joints
Male inboard joint with 24 splines
Conventional outboard joint with 30 splines
Axle nut thread of M22x1.5

Quick facts

Part: TrakMotive TO-86031 CV axle shaft
Fits: 2021-2022 Toyota Sienna
Position: Front left
Condition: New

A clicking noise in turns, vibration under acceleration or a torn boot with grease thrown around it can point to a worn axle shaft. A worn wheel bearing, a bad tire or a loose suspension joint can bring on similar noise or vibration, so find the cause before buying. If the axle is the cause, this shaft replaces it.

Fits

This is a direct-fit 2021-2022 Toyota Sienna CV axle replacement for the front left side. The 2021-2022 Toyota Sienna takes one front left axle shaft; the front right is its own part, ordered separately.

Specifications

Fit and size

Position: front left
Quantity per vehicle: 1
Overall compressed length: 733 mm (28.81 in)
Overall extended length: 786 mm (30.94 in)
Axle nut hex size: 32 mm
Axle nut height: 20 mm

Build and materials

Boot material: thermoplastic, inboard and outboard
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft. The axle nut is not included.

Interchange: NCV69235

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV69235, TO-86031

Buyer's Q&A

Frequently Asked Questions

Is this a 2021-2022 Toyota Sienna CV axle shaft for the front left side?

Yes. TrakMotive TO-86031 is the front left CV axle shaft for the 2021-2022 Toyota Sienna. The front right side is a separate part.

Does the TrakMotive CV axle shaft come with the axle nut?

No. The axle nut is not included with this shaft. The nut it uses has an M22x1.5 thread and a 32 mm hex.

How many splines does this front left axle shaft have?

TrakMotive TO-86031 has 24 splines on the male inboard joint and 30 splines on the conventional outboard joint.

How can I tell if a CV axle boot is damaged?

With the engine off, look for cracks or tears in the boot and for grease thrown onto nearby parts. A shop can inspect the joints if you are unsure.

Does NCV69235 interchange with this TrakMotive axle?

Yes. NCV69235 is listed as an interchange number for TrakMotive TO-86031.
