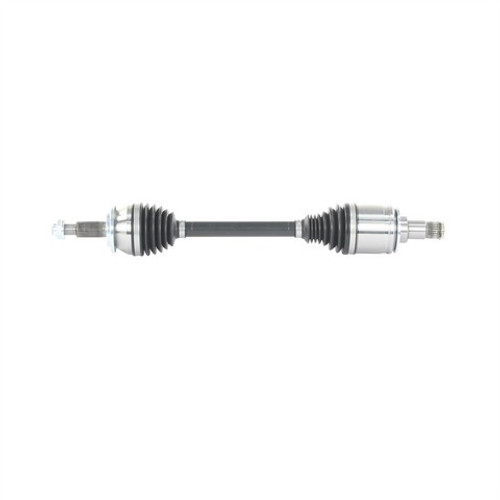

TrakMotive TO-86073 front left CV axle shaft for the 2018-2024 Toyota Camry and other vehicles sends drive torque to the wheel as the suspension moves.
- Male inboard joint with 24 inboard splines
- Conventional outboard joint with 30 outboard splines
- 678 mm compressed length and 732 mm extended length
- M22x1.5 axle nut thread with a 32 mm hex
Quick facts
- Part: TrakMotive TO-86073 CV axle shaft
- Fits: 2018-2024 Toyota Camry and other vehicles
- Position: Front left
- Condition: New
A clicking or popping noise when turning, vibration while accelerating, or grease thrown from a torn boot can mean the axle is worn. These signs alone do not prove the axle is at fault, since a worn wheel bearing can make a similar noise.
Fits
This CV axle shaft fits the 2018-2024 Toyota Camry, the 2019-2022 Toyota RAV4 and the 2019-2022 Toyota Avalon, and each takes one on the front left. The front right axle is a separate part, ordered separately. If your car is a different Toyota or Lexus, look it up in the "Vehicles it fits" section. An ABS axle also fits non-ABS applications unless otherwise noted.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Compressed length: 678 mm (26.69 in)
- Extended length: 732 mm (28.81 in)
- Inboard splines: 24
- Outboard splines: 30
- Axle nut thread: M22x1.5, 32 mm hex
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut and ABS tone ring are not included, so plan on a new axle nut.
Interchange: NCV69191 · NCV69209 · NCV69223
This part cross-references / interchanges with the following part numbers:
NCV69191, NCV69209, NCV69223, TO-86073
Frequently Asked Questions
Is this the right CV axle replacement for a 2018-2024 Toyota Camry?
Yes. TrakMotive TO-86073 is the front left CV axle shaft for the 2018-2024 Toyota Camry, and that side takes one. The front right axle is ordered separately.
Does this TrakMotive CV axle come with the axle nut?
No. This listing is the axle shaft only. The axle nut and the ABS tone ring are not included, so plan on a new nut.
How many splines does the TO-86073 axle have?
TrakMotive TO-86073 has 24 splines on the male inboard joint and 30 splines on the conventional outboard joint.
What can a clicking noise when turning mean for a front CV axle?
Clicking or popping in turns, vibration under acceleration, or grease around a torn boot can all mean a worn axle. A shop can confirm the cause.
Does NCV69191 interchange with TrakMotive TO-86073?
Yes. NCV69191 is listed as an interchange number for the TrakMotive TO-86073 CV axle shaft, along with NCV69209 and NCV69223.
