Front Right CV Axle Shaft for 2016-2020 Tesla X - TrakMotive TS-86003

$172.99

TrakMotive CV Axle Shaft TS-86003

TrakMotive CV Axle Shaft TS-86003 - view 2

TrakMotive CV Axle Shaft TS-86003 - view 3

TrakMotive CV Axle Shaft TS-86003

TrakMotive CV Axle Shaft TS-86003 - view 2

TrakMotive CV Axle Shaft TS-86003 - view 3

Part number: TS-86003

UPC: 840140508246

Condition: New

Weight: 19.60 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$172.99

Current Stock: 21

Quantity:

Adding to cart… The item has been added

Have questions?

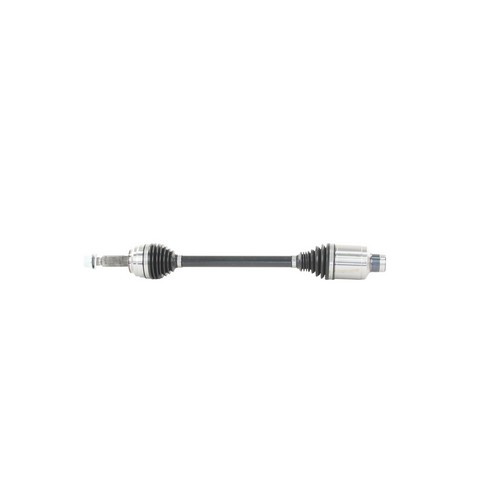

TrakMotive CV Axle Shaft P/N:TS-86003

TrakMotive CV Axle Shaft P/N:TS-86003

$172.99

$172.99

Description

TrakMotive TS-86003 front right CV axle shaft for the 2016-2020 Tesla X passes drive torque to the front right wheel. This TrakMotive CV axle replaces a worn or damaged shaft on that wheel.

Female inboard joint with 27-2T splines
Conventional outboard joint with 30 splines
Overall compressed length of 736 mm (28.94 in)
M24x1.5 axle nut thread with a 32 mm hex size

Quick facts

Part: TrakMotive TS-86003 CV axle shaft
Fits: 2016-2020 Tesla X
Position: Front right
Condition: New

A clicking noise on turns, vibration when you accelerate or grease thrown from a torn boot can mean a CV axle is worn. These signs alone do not prove the axle is the problem; a worn wheel bearing can make similar noises.

Fits

This axle shaft fits the 2016-2020 Tesla X. The 2016-2020 Tesla X takes one for this side, and the front left is its own part, ordered separately.

Specifications

Fit and size

Position: Front right
Quantity per vehicle: 1 for this side
Overall compressed length: 736 mm (28.94 in)
Axle nut thread size: M24x1.5
Axle nut hex size: 32 mm (socket size 32 mm)
Axle nut height: 24 mm
Inboard splines: 27-2T
Outboard splines: 30

Build and materials

Inboard joint: female
Outboard joint: conventional
ABS tone ring: not included
Condition: New
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One front right CV axle shaft. The axle nut and the ABS tone ring are not included, and the old axle nut may not be reusable, so plan on a new one.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Interchange numbers

This part cross-references / interchanges with the following part numbers:

TS-86003

Buyer's Q&A

Frequently Asked Questions

Does TrakMotive TS-86003 fit the 2016-2020 Tesla X on the front right?

Yes. TrakMotive TS-86003 is a front right CV axle shaft for the 2016-2020 Tesla X. The front left side takes a separate axle shaft.

Does the TrakMotive CV axle shaft come with an axle nut?

No. This TrakMotive TS-86003 shaft comes without the axle nut, which is an M24x1.5 thread with a 32 mm hex. The ABS tone ring is not included either.

How long is this front right CV axle shaft and how many splines does it have?

Overall compressed length is 736 mm (28.94 in). The inboard end has 27-2T splines and the outboard end has 30 splines.

How can I tell if a front right axle shaft's joint or boot is going bad?

A torn boot with grease thrown around it, clicking on turns or vibration under acceleration can point to a worn axle joint. A shop can confirm it.

Does TrakMotive cover this CV axle shaft with a warranty?

Yes. TrakMotive backs the TS-86003 with a limited lifetime warranty. The country of origin is China.

Reviews

No reviews yet — be the first to review this product.
