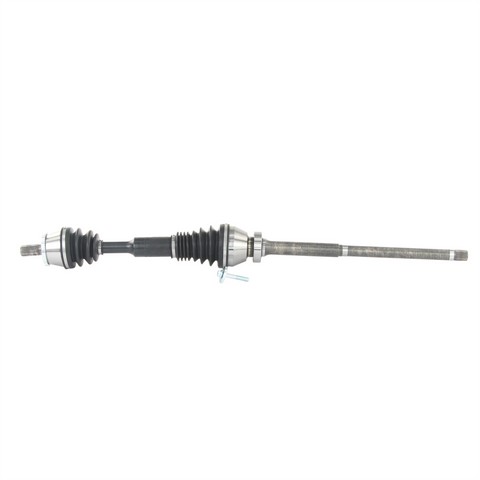

TrakMotive VO-8055 front right CV axle shaft for the 2003-2006 Volvo XC90 carries drive torque from the transmission to the wheel. This TrakMotive CV axle flexes with suspension travel and steering while it keeps turning the wheel.
- Male inboard joint with 26 splines
- Spline bolt outboard joint with 36 splines
- Neoprene boots on both the inboard and outboard joints
- Toothed ABS ring with 48 teeth, included on the axle
- Overall compressed length of 1026 mm (40.39 in)
Quick facts
- Part: TrakMotive VO-8055 CV axle shaft
- Fits: 2003-2006 Volvo XC90
- Position: Front right
- Condition: New
Clicking or popping when turning, vibration while driving, or grease thrown from a torn boot can mean this axle is worn, though a worn wheel bearing or an unbalanced tire can be behind some of those signs.
Fits
This CV axle shaft is a direct-fit replacement for the 2003-2006 Volvo XC90 on the front right side. This listing is one axle; the 2003-2006 Volvo XC90 takes one on this side, and the front left axle is ordered separately.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Overall compressed length: 1026 mm (40.39 in)
- Inboard splines: 26
- Outboard splines: 36
- Axle bolt: M10x1.5 thread, 75 mm long, 13 mm hex
Build and materials
- Inboard joint: male
- Outboard joint: Audi style spline bolt
- Boot material: neoprene (inboard and outboard)
- ABS sensor ring: toothed, 48 teeth, included
- Axle nut: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One front right CV axle shaft with its toothed ABS ring. The axle nut is not included, so plan on a new one.
Interchange: 339055 · 305722 · NCV73010 · 29068 · 40753028 · 36000510 · 86038841 · VO10021S
This part cross-references / interchanges with the following part numbers:
339055, 305722, NCV73010, 29068, 40753028, 36000510, 86038841, VO10021S, VO-8055
Frequently Asked Questions
Is TrakMotive VO-8055 the front right Volvo XC90 CV axle for 2003-2006 models?
Yes. TrakMotive VO-8055 fits the 2003-2006 Volvo XC90 on the front right side. The front left axle is a separate part.
Does the TrakMotive CV axle shaft VO-8055 come with an axle nut?
No. TrakMotive VO-8055 does not include the axle nut. It does come with the toothed ABS ring, which has 48 teeth.
What axle bolt size does this front right CV axle use?
The axle bolt has an M10x1.5 thread, is 75 mm long and has a 13 mm hex. The outboard joint is an Audi style spline bolt design with 36 splines.
How can I tell if the boots on this axle are failing?
With the engine off, look for a torn neoprene boot or grease flung onto nearby parts. Clicking in tight turns can also point to joint wear, and a shop can confirm it.
Is 339055 the same as TrakMotive VO-8055?
Yes. 339055 is listed as an interchange number for TrakMotive VO-8055, along with 305722, NCV73010 and several others on the Interchange line.
