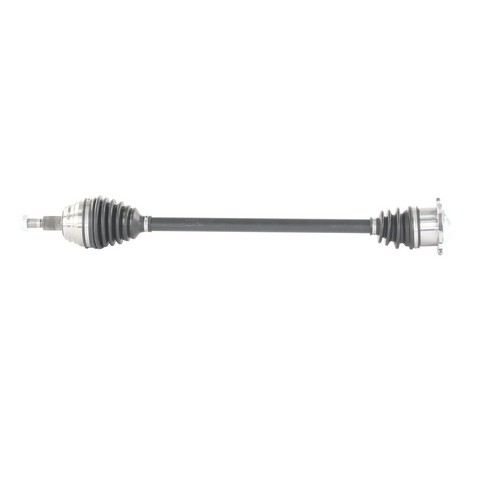

TrakMotive VW-8070 front right CV axle shaft for the 2002-2004 Volkswagen Jetta and other vehicles carries drive torque to the wheel while the suspension moves.
A worn front right axle can show up as clicking or popping on turns, vibration under acceleration, or a torn boot with grease thrown around the inside of the wheel. Wheel bearings and suspension parts can make similar noises, so look over the boot for tears or thrown grease, with the engine off and the car parked, before you order.
This TrakMotive CV axle shaft is a direct-fit replacement for the 2002-2004 Volkswagen Jetta and the 2003-2005 Volkswagen Golf. The 2002-2004 Volkswagen Jetta takes one on its front right side. This listing is one axle; the front left is a separate part, and both sides are normally replaced together.
Fit and size
Build and materials
One CV axle shaft and one self-locking axle nut. The ABS tone ring is not included.
Interchange: VW-2256 · 80-6866 · 1J0 407 272 EE · MX-18896 · AX-9136
652744 · 349070 · 304356 · NCV23611 · NCV72173 · 40754096 · 1J0407272GF · 1J0407272MB
This part cross-references / interchanges with the following part numbers:
Is this a CV axle shaft for the 2002-2004 Volkswagen Jetta?
Yes. TrakMotive VW-8070 fits the 2002-2004 Volkswagen Jetta on the front right side, and it also fits the 2003-2005 Volkswagen Golf.
Does this front right CV axle shaft come with an axle nut?
Yes. TrakMotive VW-8070 includes a self-locking axle nut with an M20x1.5 thread and a 30 mm hex. The ABS tone ring is not included.
What boot material does this front right axle shaft use?
Both the inboard and outboard joint boots are neoprene. The inboard joint is a flange type, and the outboard joint is conventional with 36 splines.
How can I tell a front right axle shaft is wearing out?
Clicking or popping on turns, vibration when accelerating, or a torn boot with grease flung around can mean the axle is wearing. A shop can confirm the cause.
Is the TrakMotive CV axle covered by a warranty?
Yes. TrakMotive backs VW-8070 with a limited lifetime warranty.
