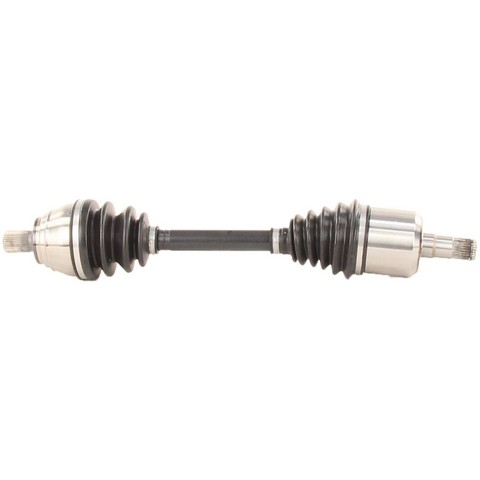

TrakMotive VW-8123 front left CV axle shaft for the 2009-2017 Volkswagen Tiguan and other vehicles carries drive torque from the transmission to the wheel. Its two joints let the wheel steer and move with the suspension while the shaft keeps turning.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 26 splines
- Conventional outboard joint with 36 splines
Quick facts
- Part: TrakMotive VW-8123 CV axle shaft
- Fits: 2009-2017 Volkswagen Tiguan and other vehicles
- Position: Front left
- Condition: New
Clicking or popping in turns, vibration while driving, or a torn boot with grease thrown around it can mean the axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind a vibration too, so find the cause before replacing the axle.
Fits
Besides the 2009-2017 Volkswagen Tiguan, it fits the 2015-2018 Audi Q3 Quattro and the 2018 Volkswagen Tiguan Limited. This listing is one axle for the front left; the 2009-2017 Volkswagen Tiguan takes one on that side, and the front right is a separate part ordered on its own.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1 on this side
- Overall compressed length: 565 mm (22.24 in)
- Inboard splines: 26
- Outboard splines: 36
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- Boot material: neoprene, inboard and outboard joints
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut and ABS tone ring are not included; plan on a new axle nut, since the old one may not be reusable.
Interchange: 60-7343
NCV23016 · PR23016 · 75309 · 5N0407761N
This part cross-references / interchanges with the following part numbers:
60-7343, NCV23016, PR23016, 75309, 5N0407761N, VW-8123
Frequently Asked Questions
Is the TrakMotive CV axle VW-8123 the right front left axle for the 2009-2017 Volkswagen Tiguan?
Yes. TrakMotive VW-8123 is a front left CV axle shaft that fits the 2009-2017 Volkswagen Tiguan. The front right side is a separate part.
Does the TrakMotive CV axle shaft come with an axle nut?
No. This listing is one CV axle shaft, and the axle nut is not included. Plan on a new nut, since the old one may not be reusable.
How many splines does the VW-8123 axle have at each end?
TrakMotive VW-8123 has a male inboard joint with 26 splines and a conventional outboard joint with 36 splines.
How can I tell if a CV axle boot is damaged?
With the engine off, look for cracks, tears or grease thrown from the boot. Clicking in turns can also mean a worn joint, and a shop can test it.
Is 60-7343 the same axle as TrakMotive VW-8123?
Yes. 60-7343 is one of the numbers TrakMotive VW-8123 replaces, along with NCV23016, PR23016, 75309 and 5N0407761N.
