Headlight Switch for 2006-2011 Toyota Camry & More - Standard Ignition CBS-1794

$176.99

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch CBS-1794

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch CBS-1794 - view 2

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch CBS-1794 - view 3

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch CBS-1794 - view 4

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch CBS-1794 - view 5

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch CBS-1794 - view 6

Part number: CBS-1794

UPC: 025623730875

Condition: New

Weight: 1.30 LBS

Item Package Quantity: 1

$176.99

Current Stock: 22

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch P/N:CBS-1794

$176.99

Description

Standard Ignition CBS-1794 headlight switch for the 2006-2011 Toyota Camry and other vehicles controls the headlights, turn signals and windshield wipers from one column lever.

Copper alloy conductors for low resistive losses and good electrical conductivity
Handle materials selected for a solid feel and durability
Tested for both mechanical and electrical switching performance
Momentary high beam flasher, latching high beam operator, running light operator and turn signal control

Quick facts

Part: Standard Ignition CBS-1794 headlight switch
Fits: the 2006-2011 Toyota Camry and other vehicles
Condition: New

Headlights or turn signals that cut out in certain lever positions, or a lever that feels loose, can mean this headlight switch is worn, though a burned bulb or a blown fuse can also be the cause, so rule those out before replacing the switch.

Fits

This headlight switch is a combination switch built for Toyota. It fits the 2006-2011 Toyota Camry, the 2008-2011 Toyota Highlander and the 2011-2015 Toyota Prius, plus other models. The 2006-2011 Toyota Camry takes one. Open the "Vehicles it fits" section to check your exact model and engine.

Specifications

Fit and size

Quantity per vehicle: 1
Voltage: 12 V
Terminal quantity: 10
Connector: rectangular, female, plug-in, 1 cavity

Build and materials

Type: combination switch
Terminal type: male pin
Attachment method: bolt on
Finish: plastic, rubber
Condition: New
Country of origin: China

In the box

One headlight switch.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is the Standard Ignition CBS-1794 the right headlight switch for the 2006-2011 Toyota Camry?

Yes. Standard Ignition CBS-1794 is listed for the 2006-2011 Toyota Camry, which takes one. For another Toyota model, open the "Vehicles it fits" section.

Is Standard Ignition CBS-1794 a headlight switch for the 2011-2015 Toyota Prius?

Yes. Standard Ignition CBS-1794 is listed for the 2011-2015 Toyota Prius, and that car takes one.

Does this headlight switch include a fog light or cruise control operator?

No. It includes a momentary high beam flasher, latching high beam operator, running light operator and turn signal control, but no fog light or cruise control operators.

How many terminals does the Standard Ignition CBS-1794 have?

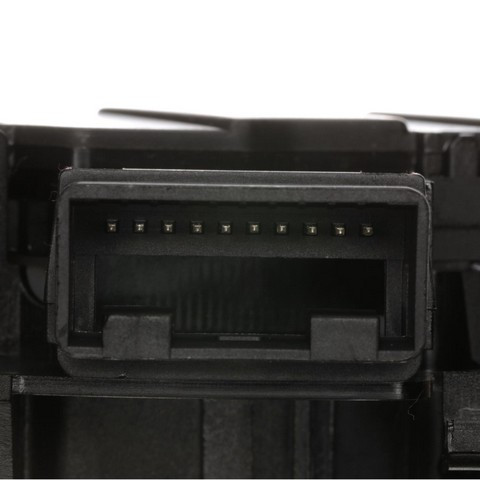

The CBS-1794 has 10 male pin terminals and one rectangular, female plug-in connector with a single cavity. It is a 12-volt switch that bolts on.

My headlight lever feels loose and the lights cut out; is the switch worn?

A lever that feels loose or lights that cut out in certain positions can be signs of a worn switch. A shop can test it electrically.
