Rear Right Brake Rotor for 2007-2017 Lexus LS460 & More - ADVICS A6R042U

$119.99
WARNING:California Proposition 65▾

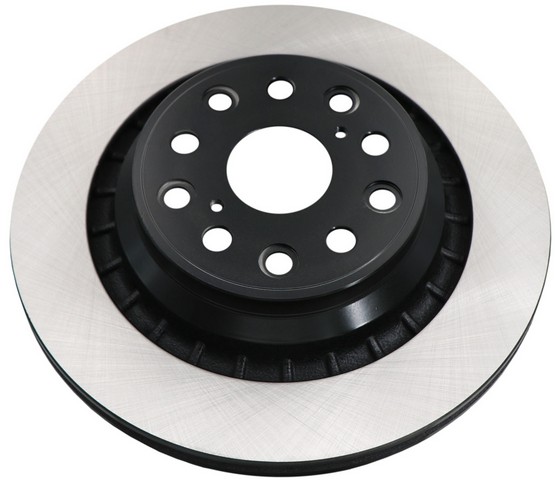

ADVICS Disc Brake Rotor A6R042U

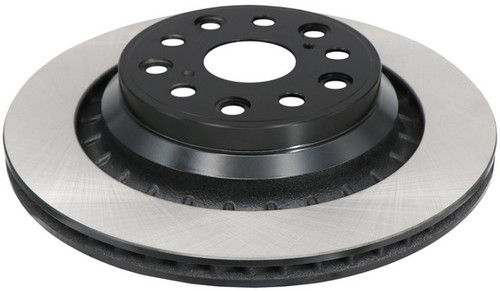

ADVICS Disc Brake Rotor A6R042U - view 2
ADVICS Disc Brake Rotor A6R042U - view 3
ADVICS Disc Brake Rotor A6R042U - view 4
ADVICS Disc Brake Rotor A6R042U
ADVICS Disc Brake Rotor A6R042U - view 2
ADVICS Disc Brake Rotor A6R042U - view 3
ADVICS Disc Brake Rotor A6R042U - view 4

Vehicles this part fits
    Part number: A6R042U
    EAN: 4562372116353
    Condition: New
    Weight: 17.50 LBS
    Sold as: 1 per listing
    $119.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    ADVICS Disc Brake Rotor P/N:A6R042U
    ADVICS Disc Brake Rotor P/N:A6R042U
    $119.99
    $119.99

    ADVICS A6R042U rear right brake rotor for the 2007-2017 Lexus LS460 and other vehicles gives the brake pads a vented surface to clamp against. ADVICS brake rotors in the OE Replacement line are built to OEM weight, vane count and air gap.

    • High carbon material and a vented design let air flow freely and efficiently
    • High carbon metallurgy for thermal stability, which reduces opportunities for warping and supports longer pad and rotor life
    • Corrosion protection coating applied to match OEMs
    • Smooth surface with a non-directional finish

    Quick facts

    • Part: ADVICS A6R042U brake rotor
    • Also called: disc brake rotor
    • Fits: 2007-2017 Lexus LS460 and other vehicles
    • Position: Rear right
    • Material: High Carbon
    • Condition: New

    Pedal pulsation, grinding or grooves on the friction face can mean this rotor is worn, though a sticking caliper or worn pads can be behind them too, so find the cause before replacing it.

    Fits

    It fits the 2007-2017 Lexus LS460 and the 2008-2016 Lexus LS600h, and the rear axle takes one rotor on each side. This listing is one rotor for the rear right; the rear left is a separate part, and the pair on that axle is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Rear right
    • Quantity: 1 per listing
    • Outside diameter: 335.0 mm (13.189 in)
    • Center hole diameter: 62 mm
    • Bolt circle: 120.0 mm (4.724 in), 5 lug holes
    • Overall height: 65.7 mm (2.587 in)
    • Nominal thickness: 22.0 mm (0.866 in)
    • Discard thickness: 20.0 mm (0.787 in)

    Build and materials

    • Type: Vented
    • Surface: Smooth, non-directional finish
    • Material: High carbon
    • Coating: Corrosion protection coating
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One brake rotor. No ABS tone ring comes with it.

    Interchange: 120.44152 · 121.44153 · 320.44152F · 604-75021D
    YH200465 · 31473 · 44611 · BR901156 · 4243150100 · 901156 · 980572 · BD180261

    This part cross-references / interchanges with the following part numbers:

    YH200465, 31473, 44611, 120.44152, 121.44153, 320.44152F, BR901156, 604-75021D, 4243150100, A6R042U, 901156, 980572, BD180261

    Frequently Asked Questions

    Does the ADVICS A6R042U rotor fit the 2008-2016 Lexus LS600h?

    Yes. This ADVICS A6R042U rear right brake rotor fits the 2008-2016 Lexus LS600h and the 2007-2017 Lexus LS460.

    Is this disc brake rotor vented or solid?

    This rear right rotor is vented, with a 335.0 mm outside diameter and a nominal thickness of 22.0 mm.

    Does the ADVICS A6R042U come with an ABS tone ring?

    No. The ABS tone ring is not included with the ADVICS A6R042U; the listing is the rotor alone.

    What is the minimum thickness for this rear right rotor?

    The discard thickness is 20.0 mm (0.787 in), against a nominal thickness of 22.0 mm (0.866 in). A rotor at or below 20.0 mm is due for replacement.

    Is 604-75021D an interchange number for this rotor?

    Yes. 604-75021D is one of the numbers listed as interchanging with the ADVICS A6R042U, along with 31473 and 980572.
