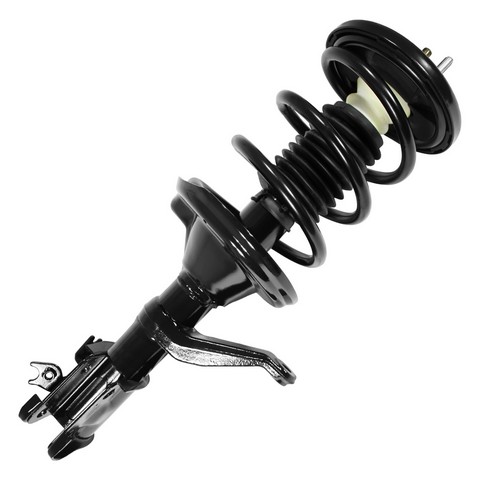

Unity Automotive 11663 front left strut assembly for the 2003-2011 Honda Element is a single unit that damps wheel movement over bumps. Also called a complete strut and coil spring assembly, it replaces a worn strut on the front left corner.
- Includes the coil spring, top mount and all components
- Installation time drops from 4 hours to less than 1 hour
- Needs no special tools
Quick facts
- Part: Unity Automotive 11663 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2003-2011 Honda Element
- Position: Front left
- Condition: New
A bouncy or nose-diving ride, clunks over bumps or fluid on the strut body can mean a strut is worn. Tires, ball joints, sway bar links and control arm bushings can be behind these signs too, so find the cause before buying.
Fits
This is a strut replacement for the 2003-2011 Honda Element, which takes one front left strut. This listing is one strut; the front right is a separate part, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1 (this side)
- Collapsed length: 21.5 in
- Compressed length: 14.37 in
- Travel length: 7.13 in
- Body length: 13.87 in
Build and materials
- Construction: pre-assembled with coil spring, top mount and all components
- Condition: New
- Country of origin: China
In the box
One front left strut assembly with the coil spring and top mount attached.
Installation notes
- Arrives fully assembled and ready to install, which also reduces vehicle down time.
Interchange: 2331632L · 836354 · G57222 · 51605SCVA04 · 51606SCVA04 · 52611SCVA02 · 501797019 · 172136
This part cross-references / interchanges with the following part numbers:
2331632L, 836354, G57222, 51605SCVA04, 51606SCVA04, 52611SCVA02, 501797019, 172136
Frequently Asked Questions
Is this strut assembly for the 2003-2011 Honda Element a front left unit?
Yes. Unity Automotive 11663 is the front left strut assembly for the 2003-2011 Honda Element; the front right side is a separate part.
What does the Unity Automotive complete strut assembly include?
Unity Automotive 11663 includes the coil spring, top mount and all components, pre-assembled as one front left unit.
Does the Unity Automotive strut assembly need special tools to install?
No. Unity Automotive 11663 arrives fully assembled and needs no special tools. Installation is cut from 4 hours to less than 1 hour.
How long is the travel on this front left strut assembly?
Travel length is 7.13 in. The assembly measures 21.5 in collapsed and 14.37 in compressed, with a 13.87 in body length.
How can I tell if a front left strut assembly is worn?
Excess bounce after bumps, a nose dive when braking or fluid seeping down the strut body can mean wear. A leak is easy to spot with the vehicle parked and the engine off.
