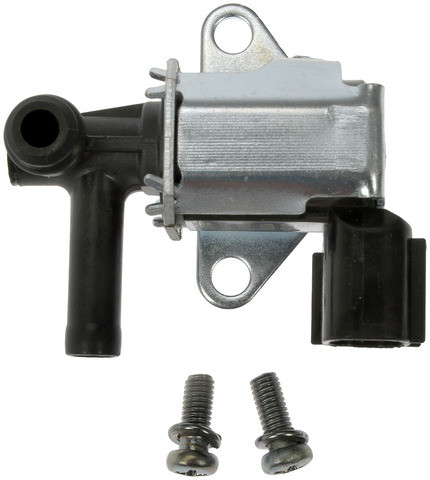

Dorman 994-047 vapor canister purge valve for the 2005-2006 Honda CR-V 4-cylinder 2.4L and other vehicles controls fuel vapor flow to the engine. It is a purge solenoid valve in the evaporative emissions system.
- Part of the Dorman OE Solutions line
- Two male blade terminals for plug-and-play connection
- Housing made of plastic and metal
- Fulfills government requirements for the evaporative emissions system
- Has undergone testing to ensure proper performance
Quick facts
- Part: Dorman 994-047 vapor canister purge valve
- Fits: the 2005-2006 Honda CR-V 4-cylinder 2.4L and other vehicles
- Material: plastic and metal housing
- Condition: New
A failing purge valve can show up as a rough idle, a check engine light with an evap code, or hard starting after refueling. Before you replace the valve, rule out a loose fuel cap, a cracked vapor hose and damaged wiring at the connector, since each can set an evap code of its own.
Fits
This valve is a direct-fit replacement for the 2005-2006 Honda CR-V 4-cylinder 2.4L. The 2005-2006 Acura RSX 4-cylinder 2.0L takes it as well, one valve per car. Testing also covered proper fit.
Specifications
Fit and size
- Length: 2.38 in
- Inlet inside diameter: 0.238 in
- Port 1 outside diameter: 0.323 in
- Port 2 outside diameter: 0.392 in
- Connector hose inside diameter: 0.375 in
- Mount hole diameter: 0.227 in, 2 mount holes
- Ports: 2
- Terminals: 2, male blade
- Connector: female, rectangular
Build and materials
- Housing material: plastic and metal
- Condition: New
- Country of origin: China
In the box
One purge valve. Mounting hardware is not included, so plan on new fasteners.
Interchange: 2M1052 · CP583 · 36162PRBA01 · CP493 · PV418
This part cross-references / interchanges with the following part numbers:
2M1052, CP583, 36162PRBA01, CP493, PV418
Frequently Asked Questions
Does the Dorman vapor canister purge valve fit the 2005-2006 Acura RSX 4-cylinder 2.0L?
Yes. Dorman 994-047 is a direct-fit replacement for the 2005-2006 Acura RSX 4-cylinder 2.0L and for the 2005-2006 Honda CR-V 4-cylinder 2.4L.
Is the Dorman OE Solutions 2 terminal vapor canister purge valve plug-and-play?
Yes. Dorman 994-047 has two male blade terminals and is engineered for plug-and-play installation.
Do I need to buy bolts separately for this Dorman 994-047 purge valve?
Yes. The box holds one purge valve only. Mounting hardware is not included, so plan on new fasteners.
What is the housing of this purge valve made of?
The housing is plastic and metal. The valve has two ports, a 0.238 in inlet inside diameter and two mount holes of 0.227 in.
Is Dorman 994-047 an interchange for 36162PRBA01?
Yes. 36162PRBA01 is one of the numbers that Dorman 994-047 replaces.
