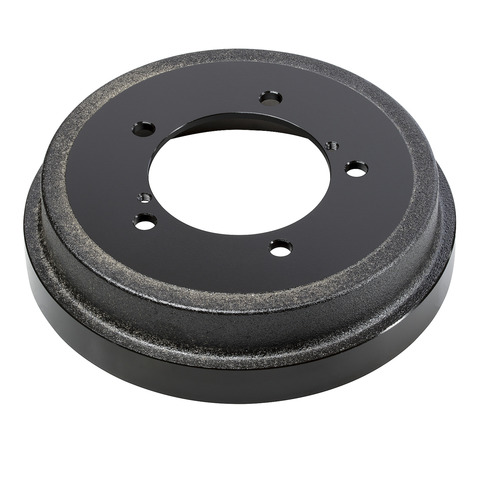

Get your rear drum brakes back to spec with the Wagner Brake Rear Brake Drum BD125705E. It drops in as a direct-fit replacement for the listed applications: the 2000-2004 Chevrolet Tracker, 2000-2005 Suzuki Grand Vitara, 2000-2004 Suzuki Vitara, and 2002-2004 Suzuki XL-7 (All engines). The cast-iron drum spins with the rear wheel while the brake shoes press outward against its inner friction surface to slow the vehicle.
Key specs: nominal drum diameter 8.661 in (220.0 mm) and a 5.500 in (139.8 mm) bolt circle diameter. Country of origin: China. Signs a rear drum may need replacing include scoring, deep grooves, or wear beyond the maximum diameter; diagnose the cause first, as other brake parts can cause similar symptoms.
Interchange: 18B414 · 80084 · JBD394P · 140719 · 140721 · 122.48015 · 123.48015 · BD80084 · 365-47004 · 36547004 · FT09024 · 30024672 · 4351165D10 · 9693 · 9693R · 4351167D01 · 201000 · 446268. Manufacturer part number BD125705E.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Which vehicles does the BD125705E fit?
It's a rear drum for the 2000-2004 Chevrolet Tracker, 2000-2005 Suzuki Grand Vitara, 2000-2004 Suzuki Vitara, and 2002-2004 Suzuki XL-7 (All engines). See the "Vehicles it fits" section to confirm.
Is this a front or rear brake drum?
This is a rear brake drum.
How many drums do I need?
Rear drum brakes use two per vehicle, one per side. This listing is for one drum, so order two and replace both sides together as a matched set for balanced braking.
What are the drum dimensions?
Nominal drum diameter is 8.661 in (220.0 mm) with a 5.500 in (139.8 mm) bolt circle diameter.
When should a brake drum be replaced?
Signs a drum may need replacing include scoring, deep grooves, or wear beyond its maximum diameter. Diagnose the cause before replacing, since other brake parts can produce similar symptoms.
