Wagner Brake SX974 rear brake pad for the 2003-2020 Chevrolet Express 2500 and other vehicles is a SevereDuty pad for fleets and police-pursuit use. This Wagner Brake disc brake pad set is designed and tested for frequent stopping, gear hauling and heavy loads.

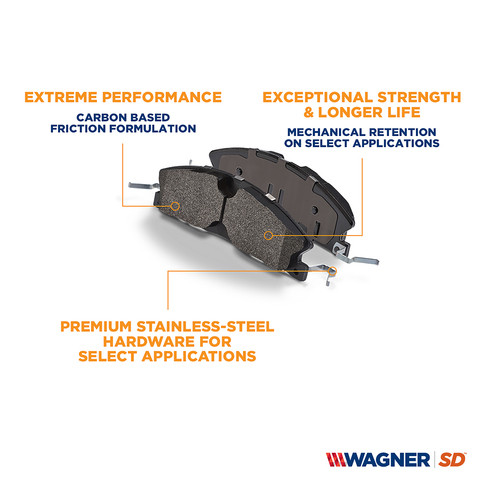

- Semi-metallic carbon-based friction material, engineered in-house for long-lasting braking performance
- OE-style on-vehicle testing under extreme heat and heavy loads
- OE style shims, slots and chamfers
- Stainless-steel hardware kits are included for key applications
- Wagner OE25 zero-copper friction formulation
Grinding, squealing or a longer stopping distance can mean the pads are worn. Pulsation or pulling can also come from the rotors or a sticking caliper, so during a brake service with the brakes cool, measure the pad material left and look at the rotor face for grooves before you decide.
The 2003-2020 Chevrolet Express 3500 and the 2003-2020 GMC Savana 2500 are in the fitment too, and each takes one set. Own something else? Look for it in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 1 set
Build and materials
- Friction material: semi-metallic
- Friction formulation: Wagner OE25 zero-copper
- Slotted: yes
- Chamfered edges: yes
- Pad wear sensor type: mechanical
- Country of origin: United States
In the box

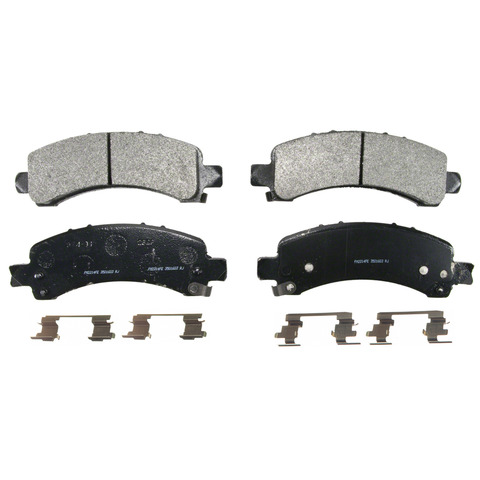

Brake pads with pad shims, abutment clips and a mechanical wear sensor.
Interchange / FMSI:
FMSI: 7875-D974 · D974
Frequently Asked Questions
Can I use these Chevy Express 2500 brake pads on a 2003-2020 Chevrolet Express 2500?
Yes. The Wagner Brake SX974 rear pads fit the 2003-2020 Chevrolet Express 2500, and the vehicle takes one set. For another vehicle, look it up in the "Vehicles it fits" section.
Do these Chevy Express 3500 brake pads also fit the 2003-2020 Chevrolet Express 3500 and the 2003-2020 GMC Savana 2500?
Yes. Wagner Brake SX974 rear pads fit the 2003-2020 Chevrolet Express 3500 and the 2003-2020 GMC Savana 2500, and each takes one set.
What hardware comes with the Wagner SX974 rear pads?
The set comes with pad shims, abutment clips and a mechanical pad wear sensor. Stainless-steel hardware kits are also included for key applications.
Are the SX974 rear pads semi-metallic, and do they contain copper?
They are semi-metallic, with a carbon-based friction material. They use the Wagner OE25 zero-copper formulation and have slotted faces with chamfered edges.
Could grinding or longer stops mean my SX974 rear pads are worn out?
Yes, grinding, squealing or a longer stopping distance can be signs of worn pads. Brakes are a safety system, so have them checked or replaced promptly rather than driving on them.
