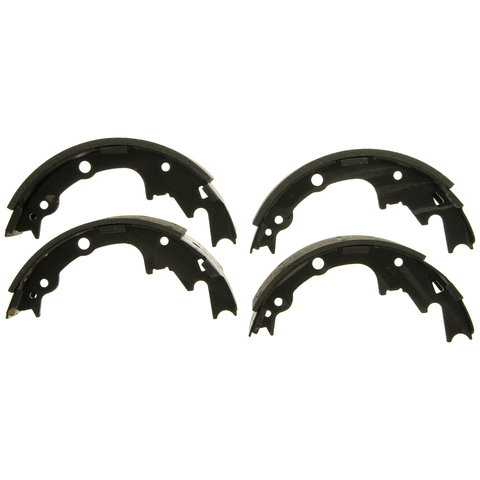

Bring your Jeep's rear drum brakes back to confident, dependable stops with the Wagner Brake Drum Brake Shoe Z769R — a direct-fit replacement for the 2001 Jeep Cherokee [All], the 2001-2006 Jeep TJ [All], and the 2001-2006 Jeep Wrangler [All]. These rear shoes use organic friction lining riveted to the shoe, with precision-ground material that Wagner matches to the original-equipment friction for solid friction-to-drum contact and consistent braking.
- Organic friction material: OE-matched, precision-ground lining meant to maximize friction-to-drum contact for smooth, predictable stops.
- Riveted construction: the friction material is riveted to the shoe.
- Sized for the application: 9.000 in brake drum diameter and 2.500 in shoe width; primary lining 0.189 in thick, secondary lining 0.255 in thick.
- What's included: mounting hardware is not included and parking brake levers are not included — consult the vehicle service information for the correct hardware and whether any parts may be reused.
As the lining thins, worn rear shoes may show up as reduced braking, longer pedal travel, or squeal/grinding from the rear; if worn shoes are the cause, this replaces the friction material. For even, balanced braking, service both rear wheels at the same time. FMSI 2190T-S769. Country of origin: China.
Interchange: AXS769 · AXS769R · R769 · RS769 · S769 · 04723367AB · 4723367AB · 5019536AA · 05019536AA · 05191789AA · 769PB · 769PG
Manufacturer part number Z769R.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Will the Wagner Z769R fit my Jeep?
It's a direct-fit rear drum brake shoe for the 2001 Jeep Cherokee [All], 2001-2006 Jeep TJ [All], and 2001-2006 Jeep Wrangler [All]. Check the Buyer's Guide tab to confirm your vehicle.
Are mounting hardware and parking brake levers included?
No. Per the catalog, mounting hardware is not included and parking brake levers are not included. Consult the vehicle service information for the correct hardware and whether any parts may be reused.
What friction material does the Z769R use?
It uses an organic friction lining that is riveted to the shoe, precision-ground and matched to the original-equipment friction to maximize friction-to-drum contact.
What are the key dimensions?
It fits a 9.000 in brake drum diameter with a 2.500 in shoe width. Primary lining thickness is 0.189 in and secondary lining thickness is 0.255 in.
Should I replace both sides at once?
For even, balanced braking it's best to service both rear wheels at the same time with fresh shoes. This listing is supplied as packaged for one application.
