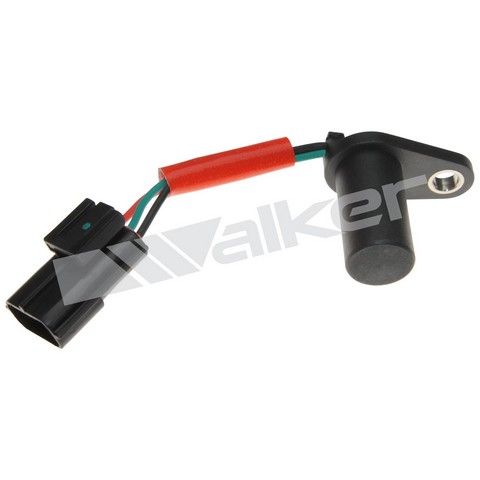

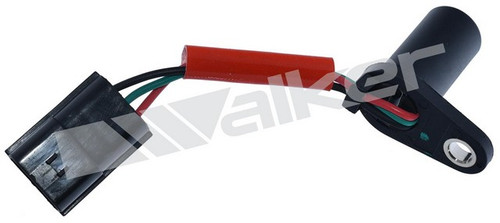

Walker Products 235-1673 camshaft position sensor for the 1999-2002 Land Rover Discovery V8 4.0L, the 2003-2004 Discovery V8 4.6L and other vehicles tells the engine control module where the camshaft is in its rotation. The module uses that signal to time fuel injection and ignition.
- Hall-effect sensing: a voltage signal is generated as the camshaft's magnet passes the sensor
- Tracks camshaft position accurately to support variable valve timing
- Designed to withstand temperature swings, vibration and exposure to engine fluids in the engine compartment
- Works with the crankshaft position sensor and the ECU to keep ignition timing and fuel supply correct
Quick facts
- Part: Walker Products 235-1673 camshaft position sensor
- Also called: cam sensor
- Fits: the 1999-2002 Land Rover Discovery V8 4.0L, the 2003-2004 Discovery V8 4.6L and other vehicles
- Condition: New
A failing cam sensor can mean hard starting, a rough idle or a check engine light. Before you replace it, inspect the wiring and connector for damage and rule out a fault there, since a wiring problem can look like a bad sensor.
Fits
This sensor fits the 1999-2002 Land Rover Discovery V8 4.0L, the 2003-2004 Discovery V8 4.6L, the 1997-2000 Land Rover Range Rover V8 4.0L and the 1997-2002 Range Rover V8 4.6L. This listing is one sensor, and each engine takes a single sensor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector quantity: 1
- Terminal quantity: 3
- Wire quantity: 3
Build and materials
- Terminal type: Blade
- Connector: female, rectangular

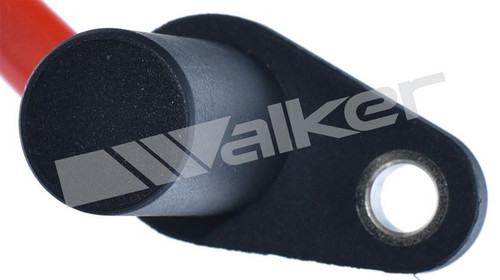

- Mounting bracket: included
- Wiring harness: included
- Grade: Standard Replacement
- Condition: New
- Country of origin: China
In the box
One camshaft position sensor with its mounting bracket and wiring harness.
Interchange: 5S1365 · 60130 · 2CAM0265 · 75171190 · ERR6169 · SEB1423 · CSE242 · 871190 · LVCP270 · 81104 · CHC3V105 · EC0203 · 20611 · 08S050 · XREV250 · PC690 · 19073 · 885517102 · V48720034 · SU5571
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
5S1365, 60130, 2CAM0265, 75171190, ERR6169, SEB1423, CSE242, 871190, LVCP270, 81104, CHC3V105, EC0203, 20611, 08S050, XREV250, PC690, 19073, 885517102, V48720034, SU5571
Frequently Asked Questions
Will this work as a camshaft position sensor for the 1997-2002 Land Rover Range Rover V8 4.6L?
Yes. Walker Products 235-1673 fits the 1997-2002 Land Rover Range Rover V8 4.6L and the 1997-2000 Range Rover V8 4.0L.
Can I use this as a camshaft position sensor on the 2003-2004 Land Rover Discovery V8 4.6L?
Yes. Walker Products 235-1673 fits the 2003-2004 Land Rover Discovery V8 4.6L, and also the 1999-2002 Discovery V8 4.0L.
Does this camshaft position sensor come with a bracket and wiring?
Yes. The sensor comes with a mounting bracket and a wiring harness.
What kind of terminals does this camshaft position sensor have?

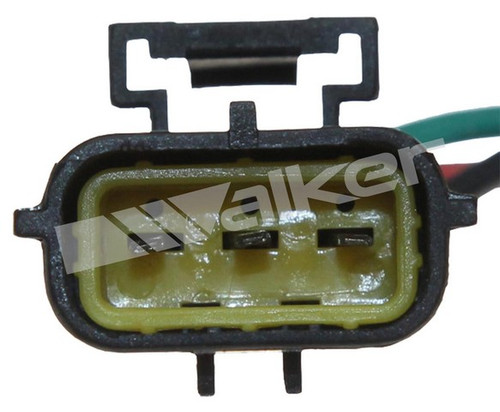

It has three blade terminals and three wires, with one female rectangular connector.
Does this Hall-effect sensor work alongside the crankshaft position sensor?
Yes. Walker Products 235-1673 is designed to work with the crankshaft position sensor and the ECU, so ignition timing and fuel supply stay correct.
