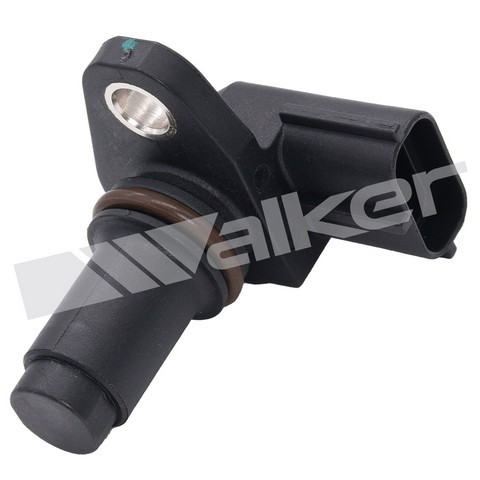

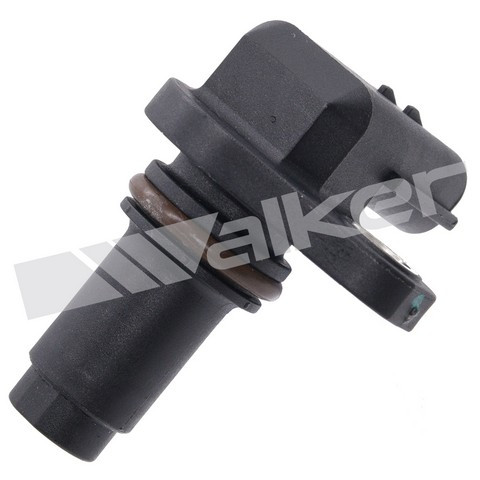

Walker Products 235-1687 camshaft position sensor for the 2022-2025 Land Rover Defender 110 V8 5.0L and other vehicles tells the engine control module where the camshaft is. As the camshaft turns, a magnet passes the Hall-effect sensor and generates a voltage signal that the module uses to time fuel injection and ignition.
- Hall Effect or magnetic induction technology tracks camshaft position and speed
- Works with the crankshaft position sensor and the vehicle's ECU to keep ignition timing and fuel supply correct
- Accurate camshaft tracking supports variable valve timing
- Designed to withstand temperature fluctuations, vibration and engine fluids in the engine compartment
- Mounting bracket included
Quick facts
- Part: Walker Products 235-1687 camshaft position sensor
- Also called: cam sensor
- Fits: 2022-2025 Land Rover Defender 110 V8 5.0L and other vehicles
- Condition: New
Hard starting, a rough idle or a check engine light can mean the cam sensor is failing. These signs alone don't prove the sensor is at fault, though; a faulty crankshaft position sensor can produce similar trouble, so find the cause before you replace anything.
Fits
The 2022-2025 Land Rover Defender 110 V8 5.0L, the 2024-2025 Defender 130 V8 5.0L and the 2022-2025 Defender 90 V8 5.0L take this sensor, along with many other vehicles. If your car isn't one of these, the "Vehicles it fits" section is where you can match your own year, make and engine to this sensor.
Specifications
Fit and size
- Quantity per vehicle: varies by vehicle
- Terminals: 3, blade type

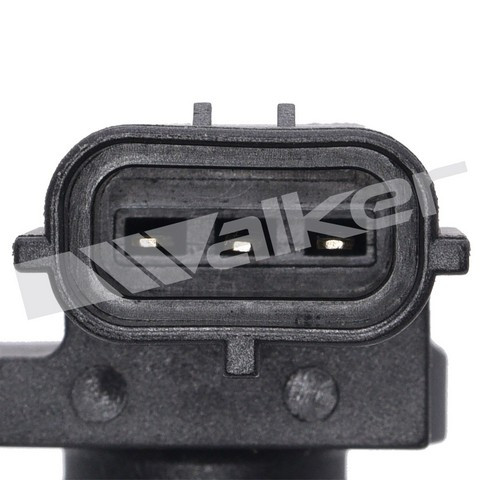

- Connector: 1 oval, female
- Wires: 3
Build and materials
- Grade: standard replacement
- Mounting bracket: included
- Condition: new
- Country of origin: China
In the box
One camshaft position sensor with its mounting bracket. A wiring harness is not included. This listing holds one sensor; the 2022-2025 Land Rover Defender 110 V8 5.0L takes four, and the count changes from one vehicle to the next.
Interchange: 5S11494 · 5S12137 · CSS1852 · 303328 · CSS1352 · 75171186 · LR001397 · LR014372 · SEB1786 · CSE257 · 871186 · LVCP215 · 81073 · CHN3A074 · EC0012 · 20613 · 08S053 · XREV593 · PC851 · 17149 · V48720031 · 30713599 · 31272689 · SU12947 · SU13558
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
5S11494, 5S12137, CSS1852, 303328, CSS1352, 75171186, LR001397, LR014372, SEB1786, CSE257, 871186, LVCP215, 81073, CHN3A074, EC0012, 20613, 08S053, XREV593, PC851, 17149, V48720031, 30713599, 31272689, SU12947, SU13558
Frequently Asked Questions
Does the Walker Products 235-1687 camshaft position sensor fit the 2022-2025 Land Rover Defender 110 V8 5.0L?
Yes. Walker Products 235-1687 fits the 2022-2025 Land Rover Defender 110 V8 5.0L, and that vehicle takes four sensors.
Does this camshaft position sensor come with a mounting bracket or a wiring harness?
Yes to the bracket: a mounting bracket is included with the sensor. No wiring harness comes with it.
How many terminals and wires does the Walker 235-1687 connector have?
Walker Products 235-1687 has one oval female connector with three blade terminals and three wires.
Can a rough idle or hard starting mean the camshaft position sensor is failing?
Yes, hard starting, a rough idle or a check engine light can mean the sensor is failing. Testing the signal needs the engine running, so a shop should do it.
Does Walker Products 235-1687 replace the number LR014372?
Yes. LR014372 is one of the other brands' numbers that Walker Products 235-1687 replaces, along with LR001397 and 5S11494.
