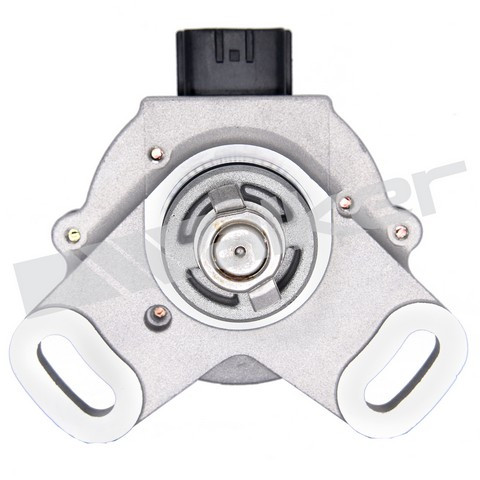

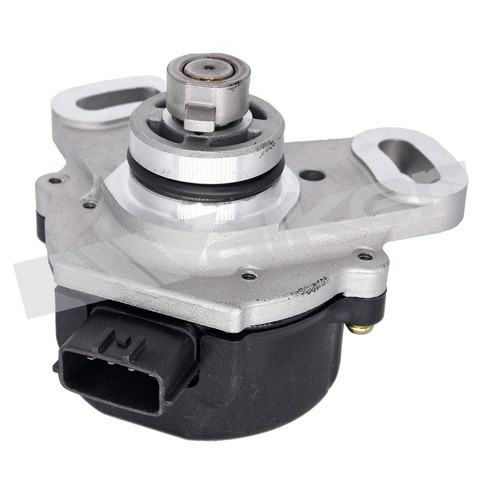

Camshaft Position Sensor for 1991-1994 Nissan Maxima - Walker 235-1812

Walker Products 235-1812 camshaft position sensor for the 1991-1994 Nissan Maxima V6 3.0L reports the position of the camshaft to the engine control module. As the camshaft turns, a magnet passes the Hall-effect sensor and generates a voltage signal. The module uses that signal to time fuel injection and ignition.

• Hall Effect or magnetic induction technology tracks camshaft position and speed
• Works with the crankshaft position sensor and the ECU to keep ignition timing and fuel supply correct
• Designed to withstand temperature fluctuations, vibrations and exposure to engine fluids in the engine compartment
• Four blade terminals in a single rectangular female connector

Quick facts

• Part: Walker Products 235-1812 camshaft position sensor
• Also called: cam sensor
• Fits: 1991-1994 Nissan Maxima V6 3.0L
• Condition: New

A failing camshaft position sensor can show up as hard starting, stalling or a check engine light. These signs alone do not prove the sensor is the problem; a fault in the crankshaft position sensor is another common cause.

Fits

This sensor fits the 1991-1994 Nissan Maxima V6 3.0L. This listing is one sensor, which is all that engine takes.

Specifications

In the box

One camshaft position sensor with a mounting bracket. The wiring harness is not included.

Interchange: 180-0507 · 31-S5601 · 689-306
5S1361 · CSS563 · CSS972 · EC0201 · 2373197E05 · PC194 · NS51 · SU4217

Product information is for general reference and may contain errors. See our Disclaimer.
