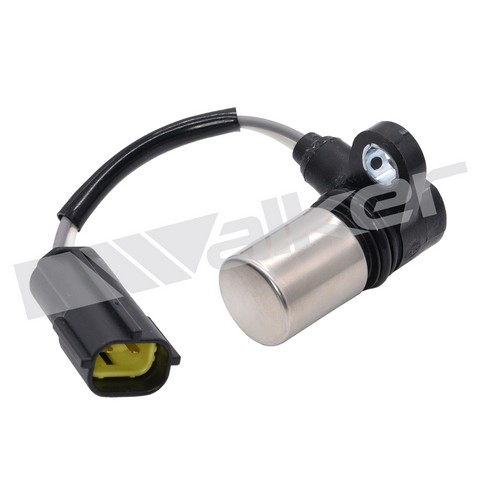

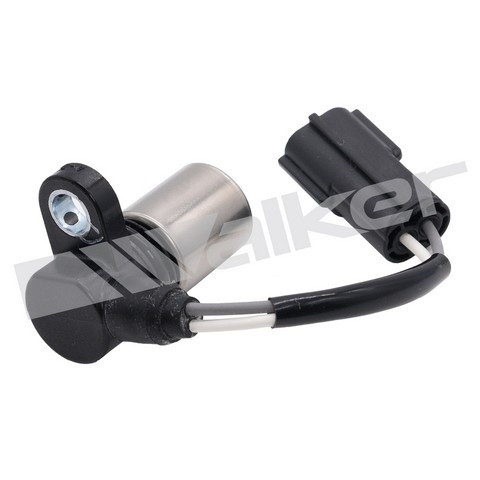

Walker Products 235-1816 camshaft position sensor for the 1995-1996 Jaguar XJ12 V12 6.0L identifies camshaft position for the engine control module. Also called a cam sensor, it tracks the position and speed of the camshaft.
- Magnet moves past a Hall-effect sensor to generate a voltage signal for the engine control module
- Signal is used to determine the correct timing of fuel injection and ignition
- Sensor designed to withstand temperature fluctuations, vibration and exposure to engine fluids
- Works with the crankshaft position sensor and the ECU to keep ignition timing and fuel supply correct
Quick facts
- Part: Walker Products 235-1816 camshaft position sensor
- Also called: cam sensor
- Fits: 1995-1996 Jaguar XJ12 V12 6.0L
- Condition: New
A check engine light, hard starting or a stalling engine can be signs of a failing camshaft position sensor. These signs alone do not prove the sensor is at fault, since damaged wiring is another common cause.
Fits
This sensor is a direct-fit replacement for the 1995-1996 Jaguar XJ12 V12 6.0L, which takes one; this listing is a single sensor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 2
- Wire quantity: 2
- Connector: 1, oval shape, female
- Wiring harness length: 139.7 mm
Build and materials
- Terminal type: Blade
- Grade: Standard Replacement
- Condition: New
- Country of origin: China
In the box
One camshaft position sensor with its wiring harness and mounting bracket.
Interchange: 5S1318 · CSS1587 · CSS1087 · LNA1646AA · EC0158 · PC427 · SU4723
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
5S1318, CSS1587, CSS1087, LNA1646AA, EC0158, PC427, SU4723
Frequently Asked Questions
Does the Walker Products 235-1816 camshaft position sensor fit the 1995-1996 Jaguar XJ12 V12 6.0L?
Yes. Walker Products 235-1816 is listed for the 1995-1996 Jaguar XJ12 V12 6.0L, and that car takes one sensor.
Does the Walker Products 235-1816 camshaft position sensor come with a wiring harness and bracket?
Yes. This sensor includes a wiring harness, 139.7 mm long, and a mounting bracket.
What connector does the Walker Products 235-1816 use?

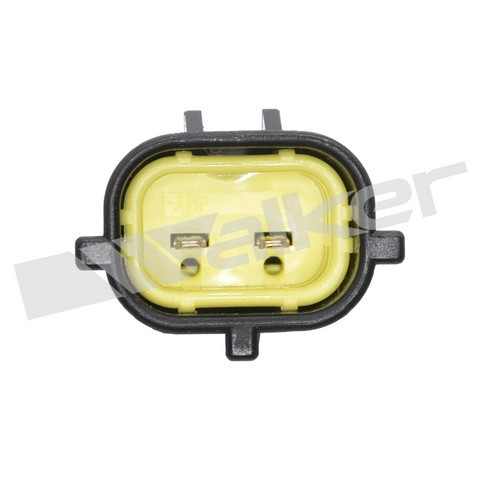

Walker Products 235-1816 has one oval female connector with two blade terminals and two wires.
How can I tell if a camshaft position sensor is going bad?
A check engine light, hard starting or stalling can be signs. A shop can read the stored codes and test the sensor.
Does the Walker 235-1816 cross-reference to CSS1587?
Yes. CSS1587 is one of the other-brand numbers this sensor replaces, listed with the rest on the Interchange line.
