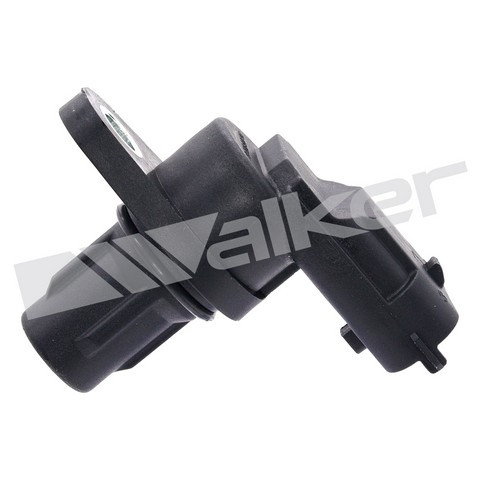

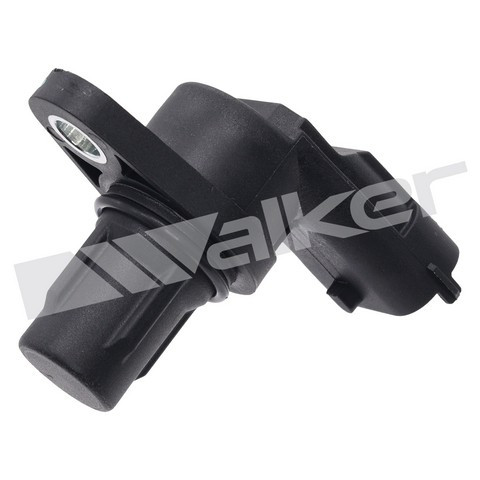

Walker Products 235-1907 camshaft position sensor for the 2014-2018 Ram ProMaster 2500 4-cylinder 3.0L and other vehicles identifies the camshaft's position for the vehicle's control module. As the camshaft turns, a magnet moves past the sensor, and the voltage signal it generates helps the module time fuel injection and ignition.
- Reports camshaft position to the ignition, engine or powertrain control module (ICM, ECM or PCM)
- Tracks camshaft position and speed to keep valve operation and fuel injection in step
- Works with the crankshaft position sensor and the vehicle's ECU to set ignition timing and fuel supply
- Designed to withstand temperature fluctuations, vibration and exposure to engine fluids
Quick facts
- Part: Walker Products 235-1907 camshaft position sensor
- Also called: cam sensor
- Fits: 2014-2018 Ram ProMaster 2500 4-cylinder 3.0L and other vehicles
- Condition: New
A failing camshaft position sensor, often called a cam sensor, can show up as a check engine light, hard starting or rough running, though those signs have other possible sources. Before replacing it, look over the sensor's connector and wiring with the engine off and cool for damage, oil or a loose fit. A shop can read the stored codes if nothing is visible.
Fits
This sensor fits the 2014-2018 Ram ProMaster 2500 4-cylinder 3.0L, the 2014-2018 Ram ProMaster 3500 4-cylinder 3.0L and the 2014-2017 Ram ProMaster 1500 4-cylinder 3.0L. This listing is one sensor, and each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminals: 3 blade terminals
- Connector: 1 female, oval shape
- Wire quantity: 3
Build and materials
- Grade: Standard replacement
- Mounting bracket: included
- Condition: New
- Country of origin: China
In the box
One camshaft position sensor with a mounting bracket. The wiring harness is not included.
Interchange: CSS2046 · 68095463AA · K68095463AA · PC1046 · S10430
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CSS2046, 68095463AA, K68095463AA, PC1046, S10430
Frequently Asked Questions
Is the Walker Products 235-1907 right for the 2014-2017 Ram ProMaster 1500 4-cylinder 3.0L?
Yes. Walker Products 235-1907 fits the 2014-2017 Ram ProMaster 1500 4-cylinder 3.0L, which takes one sensor.
Does the Walker Products 235-1907 come with a wiring harness?
No. Walker Products 235-1907 does not include a wiring harness. The sensor comes with a mounting bracket.
How many terminals and wires does this camshaft position sensor have?
This sensor has three blade terminals and three wires, with one female oval connector.
Does a camshaft position sensor work with the crankshaft position sensor?
Yes. A camshaft position sensor works together with the crankshaft position sensor and the vehicle's ECU so that ignition timing and fuel supply are correct.
Is 68095463AA an interchange number for this sensor?
Yes. 68095463AA is among the numbers Walker Products 235-1907 replaces, along with K68095463AA, CSS2046, PC1046 and S10430.
