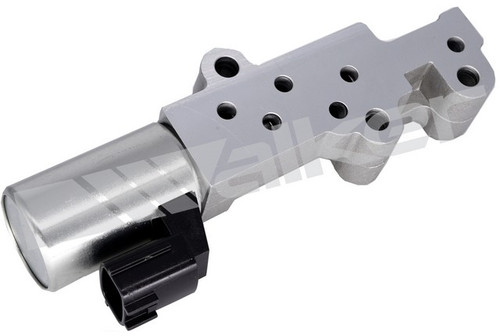

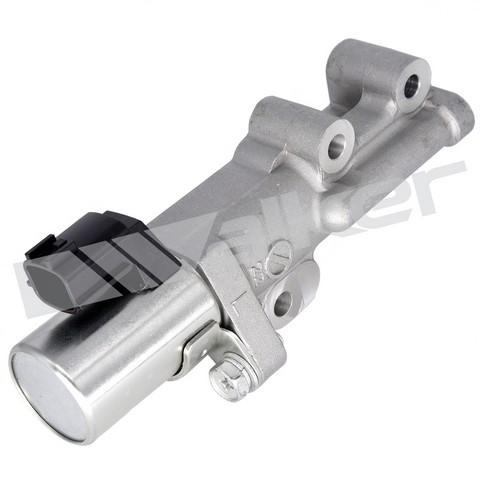

Walker Products 590-1192 left VVT solenoid for the 2003-2007 Nissan 350Z V6 3.5L and other vehicles controls the oil flow that adjusts valve timing. Its calibration matches the original electrical specs, oil flow rate and response timing.
- Regulates oil flow to the cam phaser or VVT sprocket to adjust valve timing with engine load and speed
- Precision-machined internal valves and oil-sealed connectors
- Oil-resistant seals and a heat-resistant plastic housing for long-term engine operation
- Designed to address check engine lights, poor idle and drivability problems from a sticking or failed solenoid
Quick facts
- Part: Walker Products 590-1192 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2003-2007 Nissan 350Z V6 3.5L and other vehicles
- Position: Left
- Condition: New
A variable valve timing solenoid can clog, stick open or closed, or fail electrically. That can set fault codes in the P0010–P0014 and P0020–P0024 ranges and can show up as rough idle or hesitation. Before you replace the solenoid, have a shop rule out wiring or cam phaser faults that trigger the same codes.
Fits
It fits the 2003-2007 Nissan 350Z V6 3.5L and the 2006-2007 Infiniti M35 V6 3.5L.
Specifications
Fit and size
- Position: Left
- Quantity for the left side: 1
- Mounting holes: 3
- Terminals: 2
- Connectors: 1
Build and materials
- Condition: New
- Terminal type: Spade, male terminals
- Connector: Female, square, black
- Country of origin: China
In the box
One left VVT solenoid. This side takes one, and the other side is ordered separately.
Installation notes
- Installs using the factory connectors and mounting points, with no modification required.
- Uses the factory wiring and hardware.
Interchange: 7V-6014 · 916-762 · 916-926 · 35-1051
VV1052 · 2VTS0189 · 23796AH115 · 23796EG200 · 23796EG20A · 23796EG21A · 23796EG22A · VVT152 · VTS1180 · 1655082Z10 · 1655082Z11 · 1655082Z12
This part cross-references / interchanges with the following part numbers:
VV1052, 7V-6014, 916-762, 916-926, 2VTS0189, 23796AH115, 23796EG200, 23796EG20A, 23796EG21A, 23796EG22A, VVT152, 35-1051, VTS1180, 1655082Z10, 1655082Z11, 1655082Z12
Frequently Asked Questions
Will Walker Products 590-1192 work as a VVT solenoid for the 2003-2007 Nissan 350Z V6 3.5L?
Yes. Walker Products 590-1192 is the left-side VVT solenoid for the 2003-2007 Nissan 350Z V6 3.5L and the 2006-2007 Infiniti M35 V6 3.5L.
Do I need a second solenoid for the other side?
Walker Products 590-1192 is one left-side solenoid, and the left side takes one. The other side is its own part and is ordered separately.
What connector does this VVT solenoid use?
This solenoid has one black, square female connector with two male spade terminals. It also has three mounting holes.
What fault codes can a failing VVT solenoid set?
A clogged, sticking or electrically failed solenoid can trigger codes such as P0010–P0014 or P0020–P0024, sometimes with rough idle or hesitation. A shop scan can narrow down the cause.
Does this solenoid need any modification to install?
No. It installs using the factory connectors, wiring and mounting points, so no modification is required.
