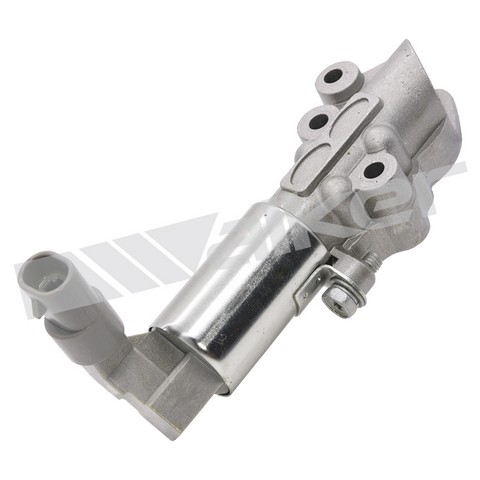

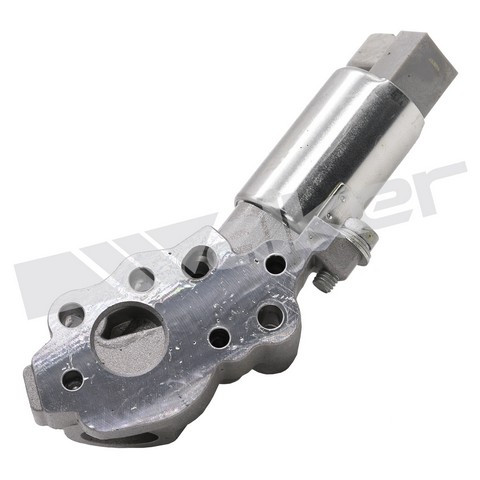

Walker Products 590-1221 right VVT solenoid for the 2010 Hyundai Sonata V6 3.3L and other vehicles regulates oil flow to the camshaft phasing system. Also called a variable valve timing solenoid, it adjusts valve timing to engine load and speed.
- Controls oil flow to the cam phaser or VVT sprocket to set valve timing, which affects fuel efficiency, throttle response and emissions
- Heat-resistant plastic housing with precision-machined internal valves
- Oil-resistant seals and oil-sealed connectors for constant engine operation
- Calibrated for electrical response, oil flow control and pressure regulation
- Two male spade terminals in one gray, oblong, female connector
Quick facts
- Part: Walker Products 590-1221 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2010 Hyundai Sonata V6 3.3L and other vehicles
- Position: Exhaust (right)
- Condition: New
Rough idle, hesitation, reduced power or fault codes in the P0010-P0014 and P0020-P0024 ranges can mean a VVT solenoid is clogged, sticking or failing electrically, though a worn cam phaser or a bad wiring connector can be behind them too. Sort out which one it is before you replace anything.
Fits
The 2010 Hyundai Sonata V6 3.3L, the 2010-2012 Hyundai Genesis Coupe V6 3.8L and the 2010-2012 Hyundai Veracruz V6 3.8L are among the vehicles this OE replacement fits. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Exhaust (right)
- Quantity per application: 1
- Mounting holes: 3
- Terminals: 2, male spade
- Connector: 1, female, oblong, gray
Build and materials
- Type: VVT solenoid
- Housing: heat-resistant plastic
- Condition: New
- Country of origin: China
In the box
One VVT solenoid. This listing holds one, and the right exhaust position takes one; the other side is ordered separately.
Installation notes
- Installs using the factory connector and mounting points, with no modification needed.
Interchange: 916-708 · 35-1022
VV1023 · 2VTS0117 · 243603C821 · VVT123 · VTS1092
This part cross-references / interchanges with the following part numbers:
VV1023, 916-708, 2VTS0117, 243603C821, VVT123, 35-1022, VTS1092
Frequently Asked Questions
Is the 590-1221 the right Hyundai Sonata vvt solenoid for a 2010 model with the V6 3.3L?
Yes. Walker Products 590-1221 fits the 2010 Hyundai Sonata V6 3.3L. It is the right exhaust position, and that side takes one solenoid.
What connector does the Walker Products 590-1221 VVT solenoid have?
It has one gray, oblong, female connector with two male spade terminals. The solenoid body has three mounting holes.
Which fault codes can a failing VVT solenoid set?
A clogged, sticking or electrically failed solenoid can set codes in the P0010-P0014 and P0020-P0024 ranges, along with rough idle or hesitation. A shop can test the circuit and the solenoid.
Does this VVT solenoid need any modification to install?
No. It installs using the factory connector and mounting points, so no modification is needed.
Does 243603C821 cross to this VVT solenoid?
Yes. 243603C821 is one of the numbers Walker Products 590-1221 replaces, along with 916-708 and VV1023.
