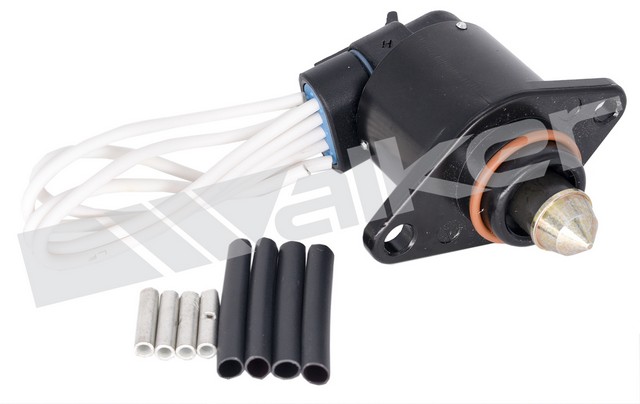

Walker Products 215-91026 fuel injection idle air control valve for the 1992-1996 Chevrolet G30 V8 5.7L and other vehicles regulates the air that bypasses the throttle plate. The engine control unit commands it to hold a steady idle speed and help prevent stalling.
- Adjusts bypass air during warm-up, load changes such as A/C or power steering use, and deceleration
- Built around pintle shape, stepper motor response, voltage range and airflow control curves
- Sealed against fuel vapors and moisture, with high-temperature-resistant materials for the engine bay
- Four-terminal blade connector and two mounting holes
Quick facts
- Part: Walker Products 215-91026 fuel injection idle air control valve
- Fits: 1992-1996 Chevrolet G30 V8 5.7L and other vehicles
- Material: Plastic (housing)
- Condition: New
Erratic idle speed, stalling, hard starting or an illuminated check engine light can mean the valve is failing. Those signs alone do not prove this part is the problem, since a vacuum leak can cause a rough idle too.
Fits
This idle air control valve is an OE replacement for the 1992-1996 Chevrolet G30 V8 5.7L, the 1992-1996 GMC G3500 V8 5.7L and the 1994 Chevrolet Blazer V8 5.7L. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal type: blade
- Terminal quantity: 4
- Mounting holes: 2
Build and materials
- Housing material: plastic
- Condition: new
- Country of origin: China
In the box
One idle air control valve. This listing holds one, and the 1992-1996 Chevrolet G30 V8 5.7L takes one.
Installation notes
- Goes directly into the original throttle body or intake housing.
- Uses the factory connectors and mounting points, with no wiring or modifications required.
Interchange: 73-4325
2H1069 · 21817 · AC131DG · 17112366 · AC123 · AC131
This part cross-references / interchanges with the following part numbers:
2H1069, 21817, 73-4325, AC131DG, 17112366, AC123, AC131
Frequently Asked Questions
Does the Walker Products 215-91026 fit the 1992-1996 Chevrolet G30 V8 5.7L?
Yes, the Walker Products 215-91026 is listed for the 1992-1996 Chevrolet G30 V8 5.7L. That vehicle takes one valve.
Does the Walker 215-91026 idle air control valve need any wiring changes?
No. The Walker Products 215-91026 goes into the throttle body using the factory connectors and mounting points, with no wiring or modifications required.
How many terminals does this idle air control valve have?
This valve has four blade terminals and two mounting holes, which are useful to compare against your old valve.
Can a sticking idle air control valve cause stalling?
It can. A faulty or sticking valve can lead to erratic idle speed, stalling, hard starting or a check engine light, and if the valve is the cause, this one replaces it.
What is the housing of this Walker idle air control valve made of?
The housing is plastic. The valve is sealed against fuel vapors and moisture and uses high-temperature-resistant materials.
