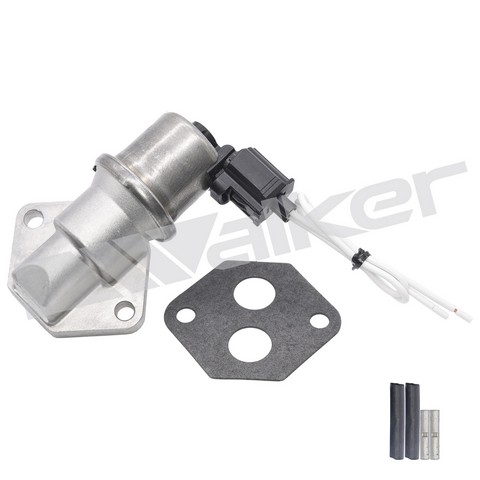

Walker Products 215-92083 fuel injection idle air control valve for the 2003-2004 Ford Mustang V8 4.6L regulates the air that bypasses the throttle plate to hold a stable idle. Also listed as a throttle air bypass valve, it is controlled by the engine control unit.
- Calibrated for pintle movement, voltage response and idle airflow control logic
- Installs directly into the throttle body using the existing connectors and mounting points, with no wiring or modifications
- Metal housing sealed against heat, vibration and fuel vapor exposure
- Adjusts airflow during warm-up, load changes such as A/C or power steering use, and deceleration
Quick facts
- Part: Walker Products 215-92083 fuel injection idle air control valve
- Fits: 2003-2004 Ford Mustang V8 4.6L
- Material: Metal (housing)
- Condition: New
Erratic idle speed, stalling, hard starting or an illuminated check engine light can be signs of a failing valve. A vacuum leak, a dirty throttle body or a faulty throttle position sensor can also be behind an uneven idle, so find out which one it is before you buy.
Fits
This valve is an OE replacement for the 2003-2004 Ford Mustang V8 4.6L.
Specifications
Fit and size
- Quantity per vehicle: 1

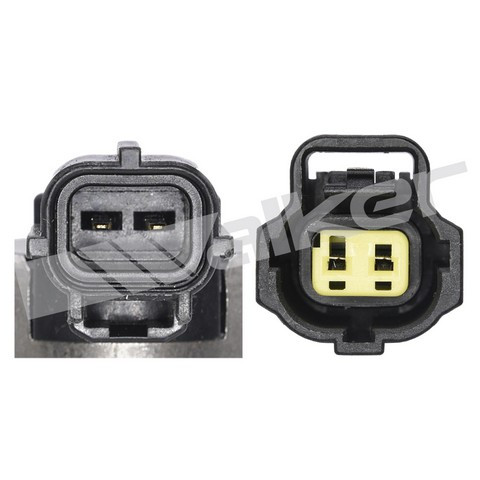

- Terminals: 2, spade type
- Mounting holes: 2
- Ports: 2
Build and materials
- Housing material: Metal
- Condition: New
- Country of origin: United States
In the box
One fuel injection idle air control valve. This listing holds one valve, and the 2003-2004 Ford Mustang V8 4.6L takes one.
Interchange: CX-1862
4J1077 · 50615 · CV10080 · TV296DG · 2R3Z9F715AB · ABV0003 · AC501 · TV296
This part cross-references / interchanges with the following part numbers:
4J1077, 50615, CV10080, TV296DG, 2R3Z9F715AB, ABV0003, CX-1862, AC501, TV296
Frequently Asked Questions
Is the Walker Products 215-92083 idle air control valve right for a 2003-2004 Ford Mustang V8 4.6L?
Yes. Walker Products 215-92083 is listed for the 2003-2004 Ford Mustang V8 4.6L, and that car takes one valve.
What kind of terminals does this idle air control valve have?
This valve has two spade terminals, two mounting holes and two ports, with a metal housing.
Can a sticking idle air control valve cause stalling and hard starting?
Yes. A faulty or sticking valve can lead to erratic idle speed, stalling, hard starting or an illuminated check engine light.
Do I need to rewire anything to install the Walker 215-92083?
No. The Walker Products 215-92083 goes directly into the throttle body using the factory connectors and mounting points, with no wiring or modifications required.
How does this valve hold idle when I switch on the A/C?
The engine control unit commands the valve to change how much air bypasses the throttle plate when loads like A/C or power steering come on, and during warm-up and deceleration.
